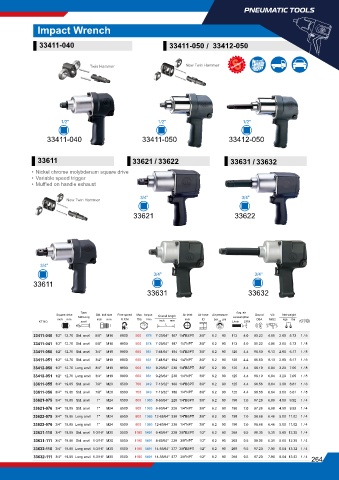

Page 305 - 蓝带金统立KINGTONY2025年样本

PNEUMATIC TOOLS

Impact Wrench

33411-040 33411-050 / 33412-050

Twin Hammer New Twin Hammer

1/2" 1/2" 1/2"

33411-040 33411-050 33412-050

33611 33621 33622 33631 33632
/
/
• Nickel chrome molybdenum square drive
• Variable speed trigger
• Muffled on handle exhaust

3/4" 3/4"
New Twin Hammer
33621 33622

3/4"
3/4" 3/4"
33611
33631 33632

Type Avg. air
Square drive Std/Long Std. bolt size Free speed Max. torque Overall length Air inlet Air hose Air pressure consumption Sound Vib Net weight
inch mm inch mm R.P.M ft‧lb N‧m inch ID bar psi DBA M/S2 kgs Ibs
KT NO. anvil inch mm L/min CFM
L
33411-040 1/2" 12.70 Std. anvil 5/8" M16 8000 500 678 7-23/64" 187 1/4"BSPT 3/8" 6.2 90 113 4.0 95.22 4.85 2.60 5.73 1 / 8
33411-041 1/2" 12.70 Std. anvil 5/8" M16 8000 500 678 7-23/64" 187 1/4"NPT 3/8" 6.2 90 113 4.0 95.22 4.85 2.60 5.73 1 / 8
33411-050 1/2" 12.70 Std. anvil 3/4" M19 8000 650 881 7-41/64" 194 1/4"BSPT 3/8" 6.2 90 125 4.4 96.50 8.13 2.80 6.17 1 / 8
33411-051 1/2" 12.70 Std. anvil 3/4" M19 8000 650 881 7-41/64" 194 1/4"NPT 3/8" 6.2 90 125 4.4 96.50 8.13 2.80 6.17 1 / 8
33412-050 1/2" 12.70 Long anvil 3/4" M19 8000 650 881 9-23/64" 238 1/4"BSPT 3/8" 6.2 90 125 4.4 96.19 6.84 3.20 7.05 1 / 8
33412-051 1/2" 12.70 Long anvil 3/4" M19 8000 650 881 9-23/64" 238 1/4"NPT 3/8" 6.2 90 125 4.4 96.19 6.84 3.20 7.05 1 / 8
33611-055 3/4" 19.05 Std. anvil 7/8" M20 6500 700 949 7-13/32" 188 1/4"BSPT 3/8" 6.2 90 125 4.4 96.56 8.64 3.00 6.61 1 / 8
33611-056 3/4" 19.05 Std. anvil 7/8" M20 6500 700 949 7-13/32" 188 1/4"NPT 3/8" 6.2 90 125 4.4 96.56 8.64 3.00 6.61 1 / 8
33621-075 3/4" 19.05 Std. anvil 1" M24 6500 800 1085 8-63/64" 228 1/4"BSPT 3/8" 6.2 90 198 7.0 97.28 6.89 4.50 9.92 1 / 4
33621-076 3/4" 19.05 Std. anvil 1" M24 6500 800 1085 8-63/64" 228 1/4"NPT 3/8" 6.2 90 198 7.0 97.28 6.89 4.50 9.92 1 / 4
33622-075 3/4" 19.05 Long anvil 1" M24 6500 800 1085 12-63/64" 330 1/4"BSPT 3/8" 6.2 90 198 7.0 96.68 6.46 5.00 11.02 1 / 4
33622-076 3/4" 19.05 Long anvil 1" M24 6500 800 1085 12-63/64" 330 1/4"NPT 3/8" 6.2 90 198 7.0 96.68 6.46 5.00 11.02 1 / 4
33631-110 3/4" 19.05 Std. anvil 1-3/16" M30 5500 1100 1491 8-43/64" 220 3/8"BSPT 1/2" 6.2 90 269 9.5 98.35 5.31 5.60 12.35 1 / 4
33631-111 3/4" 19.05 Std. anvil 1-3/16" M30 5500 1100 1491 8-43/64" 220 3/8"NPT 1/2" 6.2 90 269 9.5 98.35 5.31 5.60 12.35 1 / 4
33632-110 3/4" 19.05 Long anvil 1-3/16" M30 5500 1100 1491 14-55/64" 377 3/8"BSPT 1/2" 6.2 90 269 9.5 97.20 7.90 6.04 13.32 1 / 4
33632-111 3/4" 19.05 Long anvil 1-3/16" M30 5500 1100 1491 14-55/64" 377 3/8"NPT 1/2" 6.2 90 269 9.5 97.20 7.90 6.04 13.32 1 / 4
264
