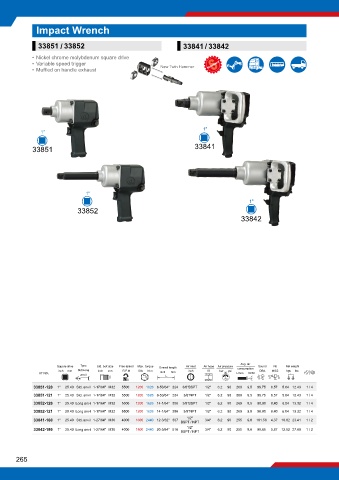

Impact Wrench

33851 33852 33841 33842
/
/
• Nickel chrome molybdenum square drive
• Variable speed trigger
• Muffled on handle exhaust New Twin Hammer

1"
1"

33851 33841

1"
1"
33852
33842

Avg. air
Square drive Type Std. bolt size Free speed Max. torque Overall length Air inlet Air hose Air pressure consumption Sound Vib Net weight
inch mm Std/Long inch mm R.P.M ft‧lb N‧m inch ID bar psi DBA M/S2 kgs Ibs
KT NO. inch mm L/min CFM
anvil L
33851-120 1" 25.40 Std. anvil 1-17/64" M32 5500 1200 1626 8-53/64" 224 3/8"BSPT 1/2" 6.2 90 269 9.5 99.75 6.57 5.64 12.43 1 / 4
33851-121 1" 25.40 Std. anvil 1-17/64" M32 5500 1200 1626 8-53/64" 224 3/8"NPT 1/2" 6.2 90 269 9.5 99.75 6.57 5.64 12.43 1 / 4
33852-120 1" 25.40 Long anvil 1-17/64" M32 5500 1200 1626 14-1/64" 356 3/8"BSPT 1/2" 6.2 90 269 9.5 98.00 8.40 6.04 13.32 1 / 4
33852-121 1" 25.40 Long anvil 1-17/64" M32 5500 1200 1626 14-1/64" 356 3/8"NPT 1/2" 6.2 90 269 9.5 98.00 8.40 6.04 13.32 1 / 4
1/2"
33841-180 1" 25.40 Std. anvil 1-27/64" M36 4000 1800 2440 12-3/32" 307 BSPT / NPT 3/4" 6.2 90 255 9.0 101.56 4.37 10.62 23.41 1 / 2
1/2"
33842-180 1" 25.40 Long anvil 1-27/64" M36 4000 1800 2440 20-5/64" 510 BSPT / NPT 3/4" 6.2 90 255 9.0 99.85 5.87 12.52 27.60 1 / 2

265
