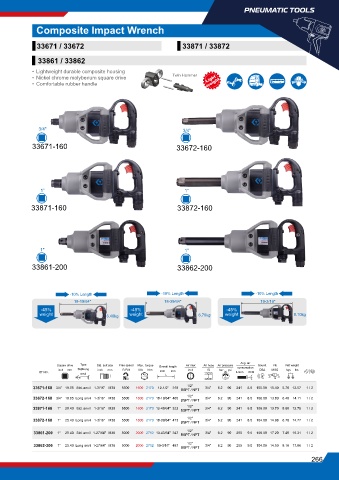

Page 307 - 蓝带金统立KINGTONY2025年样本

PNEUMATIC TOOLS

Composite Impact Wrench

33671 / 33672 33871 / 33872

33861 / 33862

• Lightweight durable composite housing
• Nickel chrome molybenum square drive Twin Hammer
• Comfortable rubber handle

3/4" 3/4"

33671-160 33672-160

1" 1"

33871-160 33872-160

1" 1"

33861-200 33862-200

-10% Length -10% Length -10% Length
18-19/64" 18-39/64" 19-3/16"
-45% -45% -45%
weight 6.40kg weight 6.70kg weight 8.10kg

Avg. air
Square drive Type Std. bolt size Free speed Max. torque Overall length Air inlet Air hose Air pressure consumption Sound Vib Net weight
inch mm Std/Long inch mm R.P.M ft‧lb N‧m inch ID bar psi DBA M/S2 kgs Ibs
KT NO. inch mm L/min CFM
anvil L
33671-160 3/4" 19.05 Std. anvil 1-3/16" M30 5500 1600 2170 12-1/2" 318 1/2" 3/4" 6.2 90 241 8.5 105.00 15.40 5.70 12.57 1 / 2
BSPT / NPT
1/2"
33672-160 3/4" 19.05 Long anvil 1-3/16" M30 5500 1600 2170 18-19/64" 465 BSPT / NPT 3/4" 6.2 90 241 8.5 106.00 13.80 6.40 14.11 1 / 2
33871-160 1" 25.40 Std. anvil 1-3/16" M30 5500 1600 2170 12-45/64" 323 1/2" 3/4" 6.2 90 241 8.5 106.00 13.70 5.80 12.79 1 / 2
BSPT / NPT
1/2"
33872-160 1" 25.40 Long anvil 1-3/16" M30 5500 1600 2170 18-39/64" 473 BSPT / NPT 3/4" 6.2 90 241 8.5 104.00 14.98 6.70 14.77 1 / 2
33861-200 1" 25.40 Std. anvil 1-27/64" M36 5000 2000 2712 13-43/64" 347 1/2" 3/4" 6.2 90 255 9.0 106.00 17.20 7.40 16.31 1 / 2
BSPT / NPT
1/2"
33862-200 1" 25.40 Long anvil 1-27/64" M36 5000 2000 2712 19-3/16" 487 BSPT / NPT 3/4" 6.2 90 255 9.0 104.00 14.50 8.10 17.86 1 / 2
266
