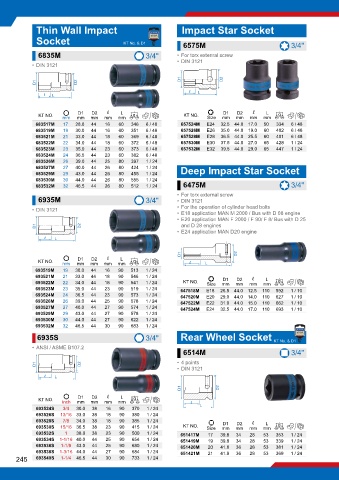

P. 286
Thin Wall Impact Impact Star Socket
Socket KT No. & D1 6575M 3/4"
6835M 3/4" • For torx external screw
• DIN 3121 • DIN 3121
D1 D2
D1 D2
l L
l L
L
D1
D2
D1
D2
ℓ
L
ℓ
KT NO. mm mm mm mm mm g KT NO. Size mm mm mm mm g
683517M 17 28.0 44 16 60 346 6 / 48 657524M E24 32.5 44.0 17.0 50 334 6 / 48
683519M 19 30.0 44 16 60 351 6 / 48 657526M E26 35.0 44.0 19.0 60 402 6 / 48
683521M 21 33.0 44 18 60 369 6 / 48 657528M E28 36.5 44.0 25.5 60 401 6 / 48
683522M 22 34.0 44 18 60 372 6 / 48 657530M E30 37.5 44.0 27.0 65 428 1 / 24
683523M 23 35.0 44 23 60 373 6 / 48 657532M E32 39.5 44.0 29.0 65 447 1 / 24
683524M 24 36.5 44 23 60 382 6 / 48
683526M 26 39.0 44 25 80 397 1 / 24
683527M 27 40.0 44 26 80 424 1 / 24 Deep Impact Star Socket
683529M 29 43.0 44 26 80 455 1 / 24
683530M 30 44.0 44 26 80 555 1 / 24
683532M 32 46.5 44 26 80 512 1 / 24 6475M 3/4"
• For torx external screw
6935M 3/4" • DIN 3121
• For the operation of cylinder head bolts
• DIN 3121
• E18 application MAN M 2000 / Bus with D 08 engine
• E20 application MAN F 2000 / F 90/ F 8/ Bus with D 25
D1 D2 and D 28 engines
• E24 application MAN D20 engine
l L
D1 D2
D1
L
ℓ
D2
KT NO. mm mm mm mm mm g l L
693519M 19 30.0 44 16 90 513 1 / 24
693521M 21 33.0 44 18 90 546 1 / 24
L
D1
ℓ
D2
693522M 22 34.0 44 18 90 541 1 / 24 KT NO. Size mm mm mm mm g
693523M 23 35.0 44 23 90 519 1 / 24 647518M E18 26.5 44.0 12.5 110 592 1 / 10
693524M 24 36.5 44 23 90 573 1 / 24 647520M E20 29.0 44.0 14.0 110 627 1 / 10
693526M 26 39.0 44 25 90 578 1 / 24 647522M E22 31.0 44.0 15.0 110 662 1 / 10
693527M 27 40.0 44 27 90 574 1 / 24 647524M E24 32.5 44.0 17.0 110 693 1 / 10
693529M 29 43.0 44 27 90 578 1 / 24
693530M 30 44.0 44 27 90 622 1 / 24
693532M 32 46.5 44 30 90 683 1 / 24
6935S 3/4" Rear Wheel Socket KT No. & D1
• ANSI / ASME B107.2
6514M 3/4"
D1 D2 • 4 points
• DIN 3121
l L
D1 D2
D2
L
ℓ
D1
KT NO. inch mm mm mm mm g l
693524S 3/4 30.0 38 16 90 370 1 / 24 L
693526S 13/16 33.0 38 18 90 380 1 / 24
693528S 7/8 34.0 38 18 90 385 1 / 24 D1 D2 L
ℓ
693530S 15/16 36.5 38 23 90 415 1 / 24 KT NO. Size mm mm mm mm g
693532S 1 38.0 38 23 90 500 1 / 24 651417M 17 39.8 34 28 53 353 1 / 24
693534S 1-1/16 40.0 44 25 90 654 1 / 24 651419M 19 39.8 34 28 53 339 1 / 24
693536S 1-1/8 43.0 44 25 90 680 1 / 24 651420M 20 41.8 36 28 53 381 1 / 24
693538S 1-3/16 44.0 44 27 90 684 1 / 24 651421M 21 41.8 36 28 53 369 1 / 24
245 693540S 1-1/4 46.5 44 30 90 733 1 / 24
