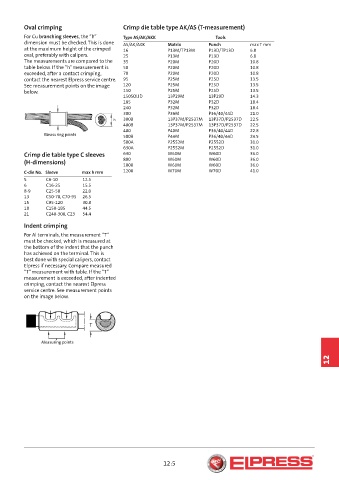

Oval crimping Crimp die table type AK/AS (T-measurement)

For Cu branching sleeves, the ”h” Type AS/AK/AKK Tools
dimension must be checked. This is done AS/AK/AKK Matrix Punch max T mm
at the maximum height of the crimped 16 P13M/TP13M P13D/TP13D 6.8
oval, preferably with calipers. 25 P13M P13D 6.8
The measurements are compared to the 35 P20M P20D 10.8
table below. If the ”h” measurement is 50 P20M P20D 10.8
exceeded, after a contact crimping, 70 P20M P20D 10.8
contact the nearest Elpress service centre. 95 P25M P25D 13.5
See measurement points on the image 120 P25M P25D 13.5
below. 150 P25M P25D 13.5
150SOLID 13P29M 13P29D 14.3
185 P32M P32D 18.4

240 P32M P32D 18.4
300 P36M P36/40/44D 21.0
300B 13P37M/P2537M 13P37D/P2537D 22.5
400B 13P37M/P2537M 13P37D/P2537D 22.5
400 P40M P36/40/44D 22.8
500B P44M P36/40/44D 24.5
500A P2552M P2552D 31.0
630A P2552M P2552D 31.0
Crimp die table type C sleeves 630 W60M W60D 36.0
(H-dimensions) 800 W60M W60D 36.0
1000 W60M W60D 36.0

C-die No. Sleeve max h mm 1200 W70M W70D 41.0
5 C6-10 12.5
6 C16-25 15.5
8-9 C25-50 22.0
13 C50-70, C70-95 26.5
15 C95-120 30.8
18 C150-185 44.5
21 C240-300, C23 54.4

Indent crimping
For Al terminals, the measurement ”T”
must be checked, which is measured at
the bottom of the indent that the punch
has achieved on the terminal. This is
best done with special calipers, contact
Elpress if necessary. Compare measured
”T” measurement with table. If the ”T”
measurement is exceeded, after indented
crimping, contact the nearest Elpress
service centre. See measurement points
on the image below.
