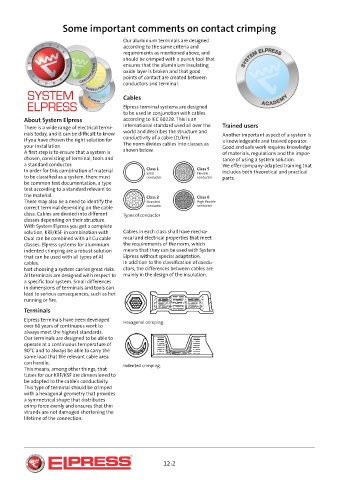

Some important comments on contact crimping

Our aluminium terminals are designed

according to the same criteria and
requirements as mentioned above, and
should be crimped with a punch tool that
ensures that the aluminium insulating
oxide layer is broken and that good
points of contact are created between
conductors and terminal.

Cables
Elpress terminal systems are designed
to be used in conjunction with cables
About System Elpress according to IEC 60228. This is an
There is a wide range of electrical termi- international standard used all over the Trained users
nals today, and it can be difficult to know world and describes the structure and Another important aspect of a system is
if you have chosen the right solution for conductivity of a cable (Ω/km) a knowledgeable and trained operator.
your installation. The norm divides cables into classes as Good and safe work requires knowledge
A first step is to ensure that a system is shown below. of materials, regulations and the impor-
chosen, consisting of terminal, tools and tance of using a system solution.
a standard conductor. We offer company-adapted training that
In order for this combination of material Class 1 Class 5 includes both theoretical and practical
Solid
Flexible
to be classified as a system, there must conductor conductor parts.
be common test documentation, a type
test according to a standard relevant to
the material. Class 2 Class 6
There may also be a need to identify the Stranded High flexible
correct terminal depending on the cable conductor conductor
class. Cables are divided into different Types of conductor
classes depending on their structure.
With System Elpress you get a complete
solution, KRF/KSF in combination with Cables in each class shall have mecha-
Dual can be combined with all Cu cable nical and electrical properties that meet
classes. Elpress systems for aluminium the requirements of the norm, which
indented crimping are a robust solution means that they can be used with System
that can be used with all types of Al Elpress without special adaptation.
cables. In addition to the classification of condu-
Not choosing a system carries great risks. ctors, the differences between cables are
All terminals are designed with respect to mainly in the design of the insulation.
a specific tool system. Small differences
in dimensions of terminals and tools can
lead to serious consequences, such as hot
running or fire.
Terminals

Elpress terminals have been developed Hexagonal crimping.
over 60 years of continuous work to
always meet the highest standards.
Our terminals are designed to be able to
operate at a continuous temperature of
90°C and to always be able to carry the
same load that the relevant cable area
can handle.
This means, among other things, that Indented crimping.
tubes for our KRF/KSF are dimensioned to
be adapted to the cable’s conductivity.
This type of terminal should be crimped
with a hexagonal geometry that provides
a symmetrical shape that distributes
crimp force evenly and ensures that thin
strands are not damaged shortening the
lifetime of the connection.
