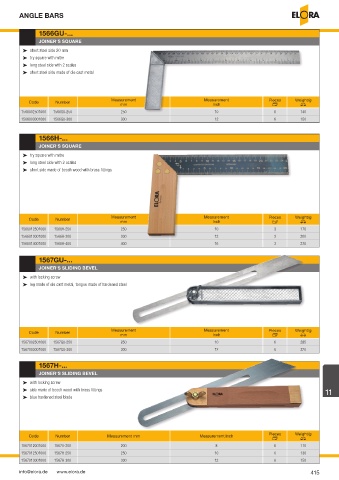

Page 415 - ELORA-Tool_Catalogue_E95

ANGLE BARS

1566GU-...
JOINER‘S SQUARE

³ short steel side 20 mm
³ try square with mitre
³ long steel side with 2 scales
³ short steel side made of die cast metal

Measurement Measurement Pieces Weight/g
Code Number
mm Inch U V
1566002501000 1566GU-250 250 10 6 140
1566003001000 1566GU-300 300 12 6 150

1566H-...
JOINER‘S SQUARE

³ try square with mitre
³ long steel side with 2 scales
³ short side made of beech wood with brass fittings

Measurement Measurement Pieces Weight/g
Code Number
mm Inch U V
1566012501000 1566H-250 250 10 3 170
1566013001000 1566H-300 300 12 3 200
1566014001000 1566H-400 400 16 3 270

1567GU-...
JOINER‘S SLIDING BEVEL
³ with locking screw
³ leg made of die cast metal, tongue made of hardened steel

Measurement Measurement Pieces Weight/g
Code Number
mm Inch U V
1567002501000 1567GU-250 250 10 6 285
1567003001000 1567GU-300 300 12 6 320

1567H-...
JOINER‘S SLIDING BEVEL
³ with locking screw
³ side made of beech wood with brass fittings 11
³ blue hardened steel blade

Code Number Measurement mm Measurement Inch Pieces Weight/g
U V
1567012001000 1567H-200 200 8 6 110
1567012501000 1567H-250 250 10 6 130
1567013001000 1567H-300 300 12 6 150
