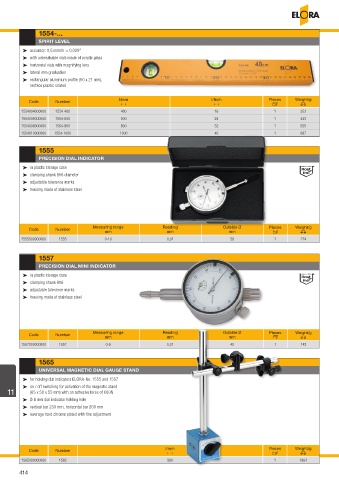

1554-...
SPIRIT LEVEL

³ accuracy: 0,5 mm/m = 0,029°
³ with unbreakable vials made of acrylic glass
³ horizontal vials with magnifying lens
³ lateral mm graduation
³ rectangular aluminium profile (50 x 21 mm),
surface plastic coated

Code Number l/mm l/Inch Pieces Weight/g
T T U V
1554004000000 1554-400 400 16 1 353
1554006000000 1554-600 600 24 1 443
1554008000000 1554-800 800 32 1 555
1554010000000 1554-1000 1000 40 1 687

1555
PRECISION DIAL INDICATOR
³ in plastic storage case
³ clamping shank 8h6 diameter
³ adjustable tolerance marks
³ housing made of stainless steel

Measuring range Reading Outside Ø Pieces Weight/g
Code Number
mm mm mm U V
1555000000000 1555 0-10 0,01 58 1 274

1557
PRECISION DIAL MINI INDICATOR
³ in plastic storage case
³ clamping shank 8h6
³ adjustable tolerance marks
³ housing made of stainless steel

Measuring range Reading Outside Ø Pieces Weight/g
Code Number
mm mm mm U V
1557000000000 1557 0-5 0,01 40 1 143

1565
UNIVERSAL MAGNETIC DIAL GAUGE STAND

³ for holding dial indicators ELORA-No. 1555 and 1557
³ on / off switching for activation of the magnetic stand
11 (65 x 50 x 55 mm) with an adhesive force of 600N
³ Ø 8 mm dial indicator holding hole
³ vertical bar 230 mm, horizontal bar 200 mm
³ leverage hard chrome plated with fine adjustment

Code Number l/mm Pieces Weight/g
T U V
1565000000000 1565 280 1 1864

414
