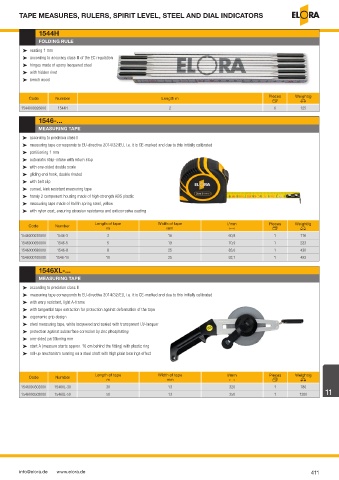

Page 411 - ELORA-Tool_Catalogue_E95

TAPE MEASURES, RULERS, SPIRIT LEVEL, STEEL AND DIAL INDICATORS

1544H
FOLDING RULE

³ reading 1 mm
³ according to accuracy class III of the EC regulation
³ hinges made of epoxy lacquered steel
³ with hidden rivet
³ beech wood

Code Number Length m Pieces Weight/g
U V
1544000028000 1544H 2 6 125

1546-...
MEASURING TAPE
³ according to precision class II
³ measuring tape corresponds to EU-directive 2014/32/EU, i.e. it is CE-marked and due to this initially calibrated
³ partitioning 1 mm
³ automatic strip-intake with return stop
³ with one-sided double scale
³ gliding end hook, double riveted
³ with belt clip
³ curved, kink resistant measuring tape
³ handy 2 component housing made of high-strength ABS plastic
³ measuring tape made of 65Mn spring steel, yellow
³ with nylon coat, ensuring abrasion resistance and anticorrosive coating
Length of tape Width of tape l/mm Pieces Weight/g
Code Number
m mm T U V
1546000030000 1546-3 3 16 60,8 1 116
1546000050000 1546-5 5 19 70,9 1 223
1546000080000 1546-8 8 25 83,0 1 430
1546000100000 1546-10 10 25 92,1 1 492
1546XL-...
MEASURING TAPE
³ according to precision class II
³ measuring tape corresponds to EU-directive 2014/32/EU, i.e. it is CE-marked and due to this initially calibrated
³ with warp resistant, light A-frame
³ with tangential tape extraction for protection against deformation of the tape
³ ergonomic grip design
³ steal measuring tape, white lacquered and sealed with transparent UV-lacquer
³ protection against subsurface corrosion by zinc phosphating
³ one-sided partitioning mm
³ start A (measure starts approx. 10 cm behind the fitting) with plastic ring
³ roll-up mechanism running on a steel shaft with high plain bearings effect

Length of tape Width of tape l/mm Pieces Weight/g
Code Number
m mm T U V
1546000302000 1546XL-30 30 13 320 1 780
1546000502000 1546XL-50 50 13 350 1 1200 11
