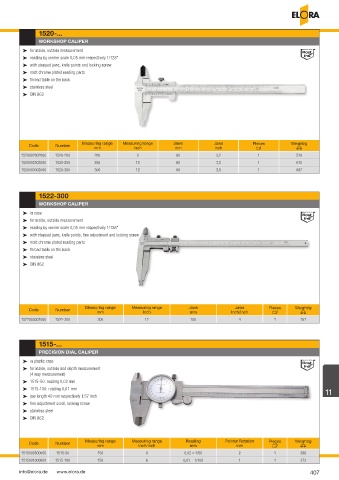

Page 407 - ELORA-Tool_Catalogue_E95

1520-...
WORKSHOP CALIPER

³ for inside, outside measurement
³ reading by vernier scale 0,05 mm respectively 1/128“
³ with stepped jaws, knife points and locking screw
³ matt chrome plated reading parts
³ thread table on the back
³ stainless steel
³ DIN 862

Measuring range Measuring range Jaws Jaws Pieces Weight/g
Code Number
mm Inch mm Inch U V
1520002002000 1520-200 200 8 80 3,2 1 519
1520002502000 1520-250 250 10 80 3,2 1 610
1520003002000 1520-300 300 12 90 3,5 1 687

1522-300
WORKSHOP CALIPER
³ in case
³ for inside, outside measurement
³ reading by vernier scale 0,05 mm respectively 1/128“
³ with stepped jaws, knife points, fine adjustment and locking screw
³ matt chrome plated reading parts
³ thread table on the back
³ stainless steel
³ DIN 862

Measuring range Measuring range Jaws Jaws Pieces Weight/g
Code Number
mm Inch mm Inch/Inch U V
1522003001000 1522-300 300 12 100 4 1 761

1515-...
PRECISION DIAL CALIPER

³ in plastic case
³ for inside, outside and depth measurement
(4 way measurement)
³ 1515-50: reading 0,02 mm
³ 1515-100: reading 0,01 mm 11
³ jaw length 40 mm respectively 1,57 inch
³ fine adjustment scroll, locking screw
³ stainless steel
³ DIN 862

Measuring range Measuring range Reading Pointer Rotation Pieces Weight/g
Code Number
mm Inch/Inch mm mm U V
1515000500000 1515-50 150 6 0,02 = 1/50 2 1 388
1515001000000 1515-100 150 6 0,01 = 1/100 1 1 373

info@elora.de www.elora.de 407
