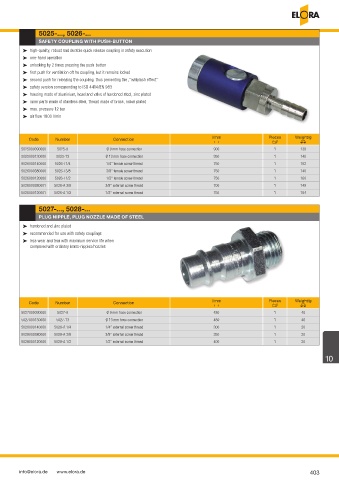

5025-..., 5026-...
SAFETY COUPLING WITH PUSH-BUTTON

³ high-quality, robust and durable quick release coupling in safety execution
³ one-hand operation
³ unlocking by 2 times pressing the push-button
³ first push for ventilation oft he coupling, but it remains locked
³ second push for releasing the coupling, thus preventing the ‚‘‘whiplash effect‘‘
³ safety version corresponding to ISO 4414/EN 983
³ housing made of aluminium, head and valve of hardened steel, zinc plated
³ inner parts made of stainless steel, thread made of brass, nickel plated
³ max. pressure 12 bar
³ air flow 1800 l/min

Code Number Connection l/mm Pieces Weight/g
T U V
5025000090000 5025-9 Ø 9 mm hose connection 900 1 139
5025000130000 5025-13 Ø 13 mm hose connection 950 1 140
5026000140000 5026-I 1/4 1/4‘‘ female screw thread 750 1 152
5026000380000 5026-I 3/8 3/8‘‘ female screw thread 750 1 140
5026000120000 5026-I 1/2 1/2‘‘ female screw thread 750 1 160
5026000380001 5026-A 3/8 3/8‘‘ external screw thread 700 1 149
5026000120001 5026-A 1/2 1/2‘‘ external screw thread 750 1 154

5027-..., 5028-...
PLUG NIPPLE, PLUG NOZZLE MADE OF STEEL
³ hardened and zinc plated
³ recommended for use with safety couplings
³ less wear and tear with maximum service life when
compared with ordinary brass-nipples/nozzles

Code Number Connection l/mm Pieces Weight/g
T U V
5027000090000 5027-9 Ø 9 mm hose connection 480 1 40
5027000130000 5027-13 Ø 13 mm hose connection 480 1 40
5028000140000 5028-A 1/4 1/4‘‘ external screw thread 300 1 20
5028000380000 5028-A 3/8 3/8‘‘ external screw thread 350 1 20
5028000120000 5028-A 1/2 1/2‘‘ external screw thread 400 1 20
