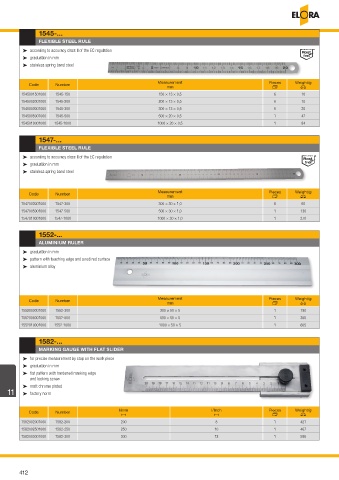

Page 412 - ELORA-Tool_Catalogue_E95

1545-...
FLEXIBLE STEEL RULE

³ according to accuracy class II of the EC regulation
³ graduation in mm
³ stainless spring band steel

Measurement Pieces Weight/g
Code Number
mm U V
1545001501000 1545-150 150 × 13 × 0,5 6 10
1545002001000 1545-200 200 × 13 × 0,5 6 10
1545003001000 1545-300 300 × 13 × 0,5 6 20
1545005001000 1545-500 500 × 20 × 0,5 1 47
1545010001000 1545-1000 1000 × 20 × 0,5 1 84

1547-...
FLEXIBLE STEEL RULE
³ according to accuracy class II of the EC regulation
³ graduation in mm
³ stainless spring band steel

Measurement Pieces Weight/g
Code Number
mm U V
1547003001000 1547-300 300 × 30 × 1,0 6 60
1547005001000 1547-500 500 × 30 × 1,0 1 130
1547010001000 1547-1000 1000 × 30 × 1,0 1 270

1552-...

ALUMINIUM RULER
³ graduation in mm
³ pattern with touching edge and anodized surface
³ aluminium alloy

Measurement Pieces Weight/g
Code Number
mm U V
1552003001000 1552-300 300 × 50 × 5 1 190
1552006001000 1552-600 600 × 50 × 5 1 365
1552010001000 1552-1000 1000 × 50 × 5 1 605

1582-...
MARKING GAUGE WITH FLAT SLIDER
³ for precise measurement by stop on the work piece
³ graduation in mm
³ flat pattern with hardened marking edge
and locking screw
³ matt chrome plated
11 ³ factory norm

Code Number l/mm l/Inch Pieces Weight/g
T T U V
1582002001000 1582-200 200 8 1 421
1582002501000 1582-250 250 10 1 467
1582003001000 1582-300 300 12 1 586

412
