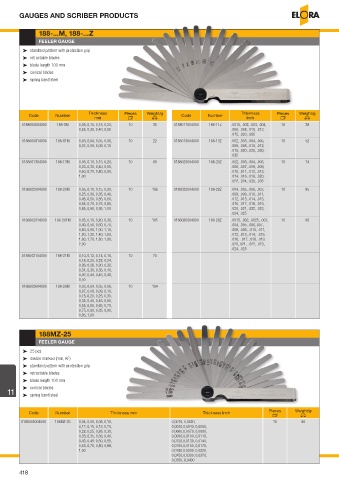

Page 418 - ELORA-Tool_Catalogue_E95

GAUGES AND SCRIBER PRODUCTS

188-...M, 188-...Z
FEELER GAUGE

³ standard pattern with protection grip
³ retractable blades
³ blade length 100 mm
³ conical blades
³ spring band steel

Thickness Pieces Weight/g Thickness Pieces Weight/g
Code Number Code Number
mm U V Inch U V
0188000804000 188-8M 0,05, 0,10, 0,15, 0,20, 10 35 0188011004000 188-11Z .0015, .002, .003, .004, 10 38
0,25, 0,30, 0,40, 0,50 .006, .008, .010, .012,
.015, .020, .025
0188000814000 188-81M 0,03, 0,04, 0,05, 0,06, 10 22 0188013004000 188-13Z .002, .003, .004, .005, 10 52
0,07, 0,08, 0,09, 0,10 .006, .008, .010, .012,
.015, .020, .025, .030,
.035
0188001304000 188-13M 0,05, 0,10, 0,15, 0,20, 10 68 0188020004000 188-20Z .002, .003, .004, .005, 10 74
0,25, 0,30, 0,40, 0,50, .006, .007, .008, .009,
0,60, 0,70, 0,80, 0,90, .010, .011, .012, .013,
1,00 .014, .016, .018, .020,
.022, .024, .030, .035
0188002004000 188-20M 0,05, 0,10, 0,15, 0,20, 10 106 0188022004000 188-22Z .004, .005, .006, .007, 10 85
0,25, 0,30, 0,35, 0,40, .008, .009, .010, .011,
0,45, 0,50, 0,55, 0,60, .012, .013, .014, .015,
0,65, 0,70, 0,75, 0,80, .016, .017, .018, .019,
0,85, 0,90, 0,95, 1,00 .020, .021, .022, .023,
.024, .025
0188002014000 188-201M 0,05, 0,10, 0,20, 0,30, 10 185 0188026004000 188-26Z .0015, .002, .0025, .003, 10 86
0,40, 0,50, 0,60, 0,70, .004, .005, .006,.007,
0,80, 0,90, 1,00, 1,10, .008, .009, .010, .011,
1,20, 1,30, 1,40, 1,50, .012, .013, .014, .015,
1,60, 1,70, 1,80, 1,90, .016, .017, .018, .019,
2,00 .020,.021, .022, .023,
.024, .025
0188002104000 188-21M 0,10, 0,12, 0,14, 0,16, 10 70
0,18, 0,20, 0,22, 0,24,
0,26, 0,28, 0,30, 0,32,
0,34, 0,36, 0,38, 0,40,
0,42, 0,44, 0,46, 0,48,
0,50
0188002604000 188-26M 0,03, 0,04, 0,05, 0,06, 10 104
0,07, 0,08, 0,09, 0,10,
0,15, 0,20, 0,25, 0,30,
0,35, 0,40, 0,45, 0,50,
0,55, 0,60, 0,65, 0,70,
0,75, 0,80, 0,85, 0,90,
0,95, 1,00

188MZ-25
FEELER GAUGE
³ 25 pcs.
³ double marked (mm, AF)
³ standard pattern with protection grip
³ retractable blades
³ blade length 100 mm
11 ³ conical blades
spring band steel
³

Code Number Thickness mm Thickness Inch Pieces Weight/g
U V
0188000004000 188MZ-25 0,04, 0,05, 0,08, 0,10, 0,0015, 0,0020, 10 86
0,12, 0,15, 0,18, 0,20, 0,0030,0,0040, 0,0050,
0,22, 0,25, 0,28, 0,30, 0,0060,0,0070, 0,0080,
0,33, 0,35, 0,38, 0,40, 0,0090,0,0100, 0,0110,
0,43, 0,45: 0,50, 0,55, 0,0120,0,0130, 0,0140,
0,63, 0,75, 0,80, 0,88, 0,0150,0,0160, 0,0170,
1,00 0,0180,0,0200, 0,0220,
0,0250,0,0300, 0,0320,
0,0350, 0,0400
