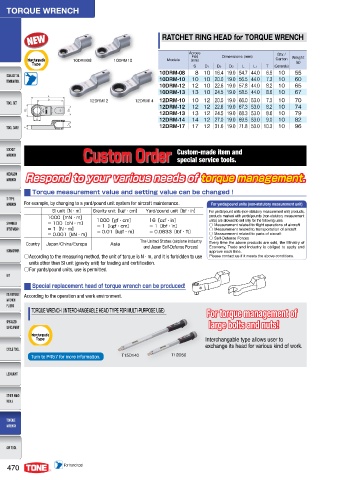

RATCHET RING HEAD for TORQUE WRENCH

Across Qty./
Flat
*OUFSDIBOHFBCMF 10DRM08 10DRM10 Models (mm) Dimensions (mm) Carton Weight
5ZQF S D1 D2 D3 L L1 T (Generally) (g)
10DRM-08 8 10 16.4 19.0 54.7 44.0 6.5 10 55
10DRM-10 10 10 20.0 19.0 56.5 44.0 7.3 10 60
10DRM-12 12 10 22.6 19.0 57.8 44.0 8.2 10 65
10DRM-13 13 10 24.5 19.0 58.5 44.0 8.6 10 67
-
- 12DRM12 12DRM14 12DRM-10 10 12 20.0 19.0 66.0 53.0 7.3 10 70
12DRM-12 12 12 22.6 19.0 67.3 53.0 8.2 10 74
% %
12DRM-13 13 12 24.5 19.0 68.3 53.0 8.6 10 79
4 12DRM-14 14 12 27.0 19.0 69.5 53.0 9.0 10 82
% 12DRM-17 17 12 31.6 19.0 71.8 53.0 10.3 10 96
5

Custom-made item and
Custom Order special service tools.

3FTQPOE UP ZPVS WBSJPVT OFFET PG UPSRVF NBOBHFNFOU
3FTQPOE UP ZPVS WBSJPVT OFFET PG UPSRVF NBOBHFNFOU

Torque measurement value and setting value can be changed !

For example, by changing to a yard/pound unit system for aircraft maintenance. For yards/pound units (non-statutory measurement unit)
SI unit［N・m］ Gravity unit［kgf・cm］ Yard/pound unit［lbf・in］ For yards/pound units (non-statutory measurement unit) products,
1000［mN・m］ 1000［gf・cm］ 16［ozf・in］ products marked with yards/pounds (non-statutory measurement
＝ 100［cN・m］ ＝ 1［kgf・cm］ ＝ 1［lbf・in］ units) are allowed to sell only for the following uses.
○ Measurement related to flight operations of aircraft
＝ 1［N・m］ ＝ 0.01［kgf・m］ ＝ 0.0833［lbf・ft］ ○ Measurement related to transportation of aircraft
＝ 0.001［kN・m］ ○ Measurement related to parts of aircraft
The United States (airplane industry ○ Self-Defense Forces
Country Japan/China/Europe Asia Every time the above products are sold, the Ministry of
and Japan Self-Defense Forces) Economy, Trade and Industry is obliged to apply and
approve each time.
○ According to the measuring method, the unit of torque is N · m, and it is forbidden to use Please contact us if it meets the above conditions.
units other than SI unit (gravity unit) for trading and certification.
○ For yards/pound units, use is permitted.

Special replacement head of torque wrench can be produced!
According to the operation and work environment.

TORQUE WRENCH (INTERCHANGEABLE HEAD TYPE FOR MULTI-PURPOSE USE) For torque management of

large bolts and nuts!

*OUFSDIBOHFBCMF
5ZQF Interchangable type allows user to
exchange its head for various kind of work.
Turn to P457 for more information. T15D140 T12D50
