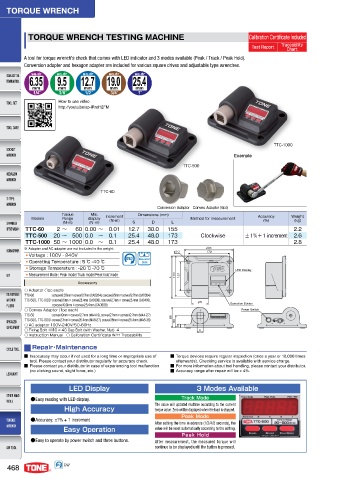

TORQUE WRENCH TESTING MACHINE Calibration Certificate Included

Test Report Traceability
Chart
A tool for torque wrench's check that comes with LED indicator and 3 modes available (Peak / Track / Peak Hold).
Conversion adapter and hexagon adapter are included for various square drives and adjustable type wrenches.
6.35 9.5 12.7 19.0 25.4

mm mm mm mm mm
1/4 3/8 1/2 3/4 1
How to use video
http://youtu.be/sp-iRroH2FM

TTC-1000
Example

TTC-500

TTC-60

Conversion Adaptor Convex Adaptor (6pt)
Torque Min. Dimensions (mm)
Models Range display Increment Method for measurement Accuracy Weight
(N･m) (N･m) (N･m) S D L (%) (kg)
TTC-60 2 ～ 60 0.00 ～ 0.01 12.7 30.0 155 2.2
TTC-500 20 ～ 500 0.0 ～ 0.1 25.4 48.0 173 Clockwise ±1％＋1 increment 2.6
TTC-1000 50 ～ 1000 0.0 ～ 0.1 25.4 48.0 173 2.8
※ Adapter and AC adapter are not included in the weight. ̎̌̑
П̍̌ ̍̓̎
● Voltage : 100V - 240V
● Operating Temperature : 5 ℃ -40 ℃
● Storage Temperature : -20 ℃ -70 ℃
-&% %JTQMBZ
● Measurement Mode : Peak mode/Truck mode/Peak hold mode ̍ ̓ ̌ ̍ ̎ ̍
-
Accessory
○ Adaptor (1pc each)
TTC-60 ： concave6.35mm×convex12.7mm (CA0204), concave9.5mm×convex12.7mm (CA0304)
TTC-500､ TTC-1000 ： concave9.5mm × convex25.4mm (CA0308), concave12.7mm × convex25.4mm (CA0408), П%
concave19.0mm×convex25.4mm (CA0608) 0QFSBUJPO #VUUPO
○ Convex Adaptor (1pc each) 1PXFS 4XJUDI
TTC-60 ： convex19mm×convex12.7mm (MA4-19), convex27mm×convex12.7mm (MA4-27)
TTC-500､ TTC-1000 ： convex27mm×convex25.4mm (MA8-27), convex38mm×convex25.4mm (MA8-38) ̔ ̑ ̑ ̌
○ AC adaptor 100V-240V/50-60Hz ̍ ̑
○ Fixing Bolt：M10 × 40 Cap Bolt (with Washer, Nut) 4 ̨
○ Instruction Manual ○ Calibration Certificate W/H Traceability
Repair･Maintenance

■ Inaccuracy may occur if not used for a long time or impropriate use of ■ Torque devices require regular inspection (once a year or 10,000 times
tool. Please contact your distributor regularly for accuracy check. afterwards). Checking service is available with service charge.
■ Please contact your distributor in case of experiencing tool malfunction ■ For more information about tool handling, please contact your distributor.
(no clicking sound, slight force, etc.) ■ Accuracy range after repair will be ± 4%.

LED Display 3 Modes Available

●Easy reading with LED display. Track Mode
High Accuracy The value will updated realtime according to the current
torque value. Zero will be displayed when the load is stopped.
Peak Mode
●Accuracy: ±1% + 1 increment
After setting the time in advance (1/2/4/8 seconds), the
Easy Operation value will be reset automatically according to the setting.
Peak Hold
●Easy to operate by power switch and three buttons. After measurement, the measured torque will
continue to be displayed until the button is pressed.

468
