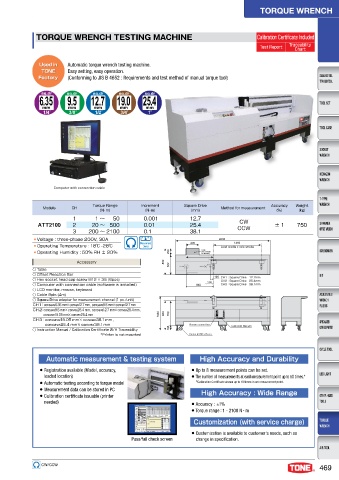

TORQUE WRENCH TESTING MACHINE Calibration Certificate Included

Test Report Traceability
Chart
Used in Automatic torque wrench testing machine.
TONE Easy setting, easy operation.
Factory (Conforming to JIS B 4652 : Requirements and test method of manual torque tool)

6.35 9.5 12.7 19.0 25.4

mm mm mm mm mm
1/4 3/8 1/2 3/4 1

Computer with connection cable

Torque Range Increment Square Drive Accuracy Weight
Models CH Method for measurement
(N･m) (N･m) (mm) (%) (kg)
1 1 ～ 50 0.001 12.7
CW
ATT2100 2 20 ～ 500 0.01 25.4 CCW ±1 750
3 200 ～ 2100 0.1 38.1
● Voltage : three-phase 200V, 30A 2890
1460
● Operating Temperature : 18℃ -28℃ 400 -PBE DSBEMF Y BYJT TUSPLF
● Operating Humidity : 50% RH ± 20% 200 5BCMF
*U T QPTTJCMF
UP SFNPWF
Accessory 802 602
○ Table
○ Offset Reaction Bar
○ Hex socket head cap screw M12 × 35 (6pcs) 100 $) ɿ4RVBSF %SJWFɹ ̼̼
$) ɿ4RVBSF %SJWFɹ ̼̼
○ Computer with connection cable (software is installed) 840 250 $) ɿ4RVBSF %SJWFɹ ̼̼
○ LCD monitor, mouse, keyboard
○ Cable 9pin (4m)
○ Square Drive adapter for measurement channel (1 pc./unit)
ＣＨ１：concave6.35 ｍｍ×convex12.7 ｍｍ , concave9.5 ｍｍ×convex12.7 ｍｍ
ＣＨ２：concave9.5 ｍｍ× convex25.4 ｍｍ , concave12.7 ｍｍ× convex25.4 ｍｍ ,
concave19.05 ｍｍ× convex25.4 ｍｍ 1040 924 759
ＣＨ３：concave19.05 ｍｍ× convex38.1 ｍｍ ,
concave25.4 ｍｍ× convex38.1 ｍｍ 3FNPUF DPOUSPM CPY $VSMZ DPSE .BY N
○ Instruction Manual / Calibration Certificate W/H Traceability 165
*Printer is not mounted $BTUFS П Y QDT

Automatic measurement & testing system High Accuracy and Durability
● Registration available (Model, accuracy, ● Up to 8 measurement points can be set.
loaded location) ● The number of measurements at each measurement point up to 50 times.*
● Automatic testing according to torque model *Calibration Certificate shows up to 10 times in one mesurement point.
● Measurement data can be stored in PC High Accuracy : Wide Range
● Calibration certificate issuable (printer
needed) ● Accuracy : ±1%
● Torque range：1 - 2100 N・m
Customization (with service charge)

● Customization is available to customer's needs, such as
Pass/fail check screen change in specification.
