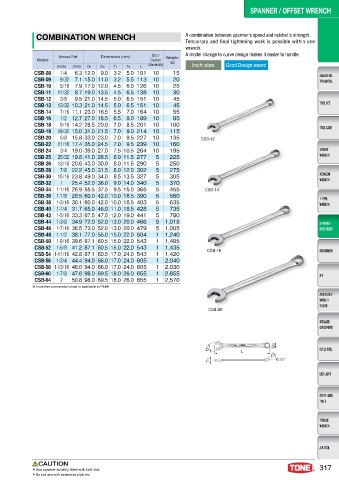

Page 319 - 日本前田TONE

COMBINATION WRENCH A combination between spanner's speed and ratchet's strength.
Temporary and final tightening work is possible within one
wrench.
Across Flat Dimensions (mm) Qty./ Weight A model change to curve design makes it easier to handle.
Models Carton (g)
(inch) (mm) D1 D2 T1 T2 L (Generally) inch size Good Design award
CSB-08 1/4 6.3 12.0 9.0 3.2 5.0 101 10 15
CSB-09 9/32 7.1 15.0 11.0 3.2 5.5 113 10 20
CSB-10 5/16 7.9 17.0 12.0 4.5 6.0 126 10 25
CSB-11 11/32 8.7 19.0 13.5 4.5 6.5 138 10 30
CSB-12 3/8 9.5 21.0 14.5 5.0 6.5 151 10 45
CSB-13 13/32 10.3 21.0 14.5 5.0 6.5 151 10 45
CSB-14 7/16 11.1 23.0 16.5 5.5 7.0 164 10 55
CSB-16 1/2 12.7 27.0 18.5 6.5 8.0 189 10 85
CSB-18 9/16 14.2 28.5 20.0 7.0 8.5 201 10 100
CSB-19 19/32 15.0 31.0 21.5 7.0 9.0 214 10 115
CSB-20 5/8 15.8 33.0 23.0 7.0 9.5 227 10 135 CSB-12
CSB-22 11/16 17.4 35.0 24.5 7.0 9.5 239 10 160
CSB-24 3/4 19.0 39.0 27.0 7.5 10.5 264 10 195
CSB-25 25/32 19.8 41.0 28.5 8.0 11.5 277 5 225
CSB-26 13/16 20.6 43.0 30.0 8.0 11.5 290 5 250
CSB-28 7/8 22.2 45.0 31.5 8.0 12.0 302 5 275
CSB-30 15/16 23.8 49.0 34.0 8.5 13.5 327 5 305
CSB-32 １ 25.4 52.0 36.0 9.0 14.0 340 5 370
CSB-34 1-1/16 26.9 55.5 37.5 9.5 15.0 365 5 455 CSB-14
CSB-36 1-1/8 28.5 60.0 42.0 10.0 18.5 390 5 560
CSB-38 1-3/16 30.1 60.0 42.0 10.0 18.5 403 5 635
CSB-40 1-1/4 31.7 65.0 46.0 11.0 18.5 428 5 735
CSB-42 1-5/16 33.3 67.5 47.5 12.0 19.0 441 5 780
CSB-44 1-3/8 34.9 72.0 52.0 13.0 20.0 466 5 1,015
CSB-46 1-7/16 36.5 73.0 52.0 13.0 20.0 479 5 1,005
CSB-48 1-1/2 38.1 77.0 55.0 15.0 22.0 504 1 1,240
CSB-50 1-9/16 39.6 87.1 60.5 15.0 22.0 543 1 1,485
CSB-52 1-5/8 41.2 87.1 60.5 15.0 22.0 543 1 1,435 CSB-16
CSB-54 1-11/16 42.8 87.1 60.5 17.0 24.0 543 1 1,420
CSB-56 1-3/4 44.4 94.0 66.0 17.0 24.0 605 1 2,040
CSB-58 1-13/16 46.0 94.0 66.0 17.0 24.0 605 1 2,030
CSB-60 1-7/8 47.6 98.0 69.5 18.0 26.0 655 1 2,655
CSB-64 2 50.8 98.0 69.5 18.0 26.0 655 1 2,570
※ Inch/mm conversion chart is available in P489.

CSB-20

CAUTION
● Use spanner suitably fitted with bolt / nut. 317
● Do not use with extension pipe etc.
