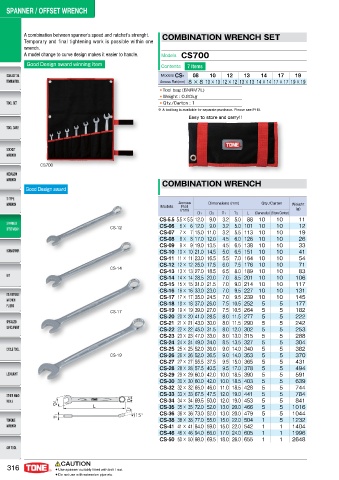

Page 318 - 日本前田TONE

A combination between spanner's speed and ratchet's strenght. COMBINATION WRENCH SET
Temporary and final tightening work is possible within one
wrench.
A model change to curve design makes it easier to handle. Models CS700
Good Design award winning item Contents 7 Items

Models CS- 08 10 12 13 14 17 19
Across Flat(mm) 8×8 10 × 10 12 × 12 13 × 13 14 × 14 17 × 17 19 × 19
● Tool bag (BNRM7L)
● Weight : 0.90kg
● Qty./Carton : 1
※ A tool bag is available for separate purchase. Please see P115.
Easy to store and carry!!

CS700

COMBINATION WRENCH
Good Design award

Across Dimensions (mm) Qty./Carton Weight
Models Flat
(mm) (g)
D1 D2 T1 T2 L (Generally) (Store Center)
CS-5.5 5.5 × 5.5 12.0 9.0 3.2 5.0 88 10 10 11
CS-12 CS-06 6× 6 12.0 9.0 3.2 5.0 101 10 10 12
CS-07 7× 7 15.0 11.0 3.2 5.5 113 10 10 19
CS-08 8× 8 17.0 12.0 4.5 6.0 126 10 10 26
CS-09 9× 9 19.0 13.5 4.5 6.5 138 10 10 33
CS-10 10 × 10 21.0 14.5 5.0 6.5 151 10 10 41
CS-11 11 × 11 23.0 16.5 5.5 7.0 164 10 10 54
CS-12 12 × 12 25.0 17.5 6.0 7.5 176 10 10 71
CS-14
CS-13 13 × 13 27.0 18.5 6.5 8.0 189 10 10 83
CS-14 14 × 14 28.5 20.0 7.0 8.5 201 10 10 106
CS-15 15 × 15 31.0 21.5 7.0 9.0 214 10 10 117
CS-16 16 × 16 33.0 23.0 7.0 9.5 227 10 10 131
CS-17 17 × 17 35.0 24.5 7.0 9.5 239 10 10 145
CS-18 18 × 18 37.0 26.0 7.5 10.5 252 5 5 177
CS-17 CS-19 19 × 19 39.0 27.0 7.5 10.5 264 5 5 182
CS-20 20 × 20 41.0 28.5 8.0 11.5 277 5 5 222
CS-21 21 × 21 43.0 30.0 8.0 11.5 290 5 5 242
CS-22 22 × 22 45.0 31.5 8.0 12.0 302 5 5 253
CS-23 23 × 23 47.0 33.0 8.0 13.0 315 5 5 288
CS-24 24 × 24 49.0 34.0 8.5 13.5 327 5 5 304
CS-25 25 × 25 52.0 36.0 9.0 14.0 340 5 5 382
CS-19 CS-26 26 × 26 52.0 36.5 9.0 14.0 353 5 5 370
CS-27 27 × 27 55.5 37.5 9.5 15.0 365 5 5 431
CS-28 28 × 28 57.5 40.5 9.5 17.0 378 5 5 494
CS-29 29 × 29 60.0 42.0 10.0 18.5 390 5 5 591
CS-30 30 × 30 60.0 42.0 10.0 18.5 403 5 5 639
CS-32 32 × 32 65.0 46.0 11.0 18.5 428 5 5 744
CS-33 33 × 33 67.5 47.5 12.0 19.0 441 5 5 784
CS-34 34 × 34 69.5 50.0 12.0 19.0 453 5 5 841
CS-35 35 × 35 72.0 52.0 13.0 20.0 466 5 5 1016
CS-36 36 × 36 73.0 52.0 13.0 20.0 479 5 5 1044
CS-38 38 × 38 77.0 55.0 15.0 22.0 504 1 5 1232
CS-41 41 × 41 84.0 59.0 15.0 22.0 542 1 1 1404
CS-46 46 × 46 94.0 66.0 17.0 24.0 605 1 1 1996
CS-50 50 × 50 98.0 69.5 18.0 26.0 655 1 1 2648

CAUTION
316 ● Use spanner suitably fitted with bolt / nut.
● Do not use with extension pipe etc.
