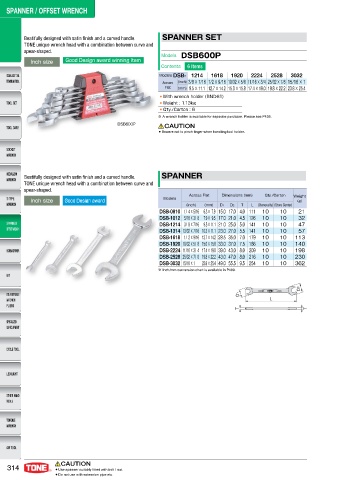

Page 316 - 日本前田TONE

Beatifully designed with satin finish and a curved handle. SPANNER SET
TONE unique wrench head with a combination between curve and
spear-shaped. Models DSB600P

inch size Good Design award winning item
Contents 6 Items
Models DSB- 1214 1618 1920 2224 2528 3032
Across (inch) 3/8×7/16 1/2×9/16 19/32×5/8 11/16×3/4 25/32×7/8 15/16 × 1
Flat (mm) 9.5×11.1 12.7×14.2 15.0×15.8 17.4×19.0 19.8×22.2 23.8×25.4
● With wrench holder (BND61)
● Weight : 1.13kg
● Qty./Carton : 6
※ A wrench holder is available for separate purchase. Please see P438.
DSB600P CAUTION
● Beware not to pinch finger when handling tool holder.

Beatifully designed with satin finish and a curved handle. SPANNER
TONE unique wrench head with a combination between curve and
spear-shaped.
Across Flat Dimensions (mm) Qty./Carton Weight
inch size Good Design award Models (g)
(inch) (mm) D1 D2 T L (Generally) (Store Center)
DSB-0810 1/ 4×5/16 6.3× 7.9 15.0 17.0 4.0 111 10 10 21
DSB-1012 5/16×3/ 8 7.9× 9.5 17.0 21.0 4.5 126 10 10 32
DSB-1214 3/ 8×7/16 9.5×11.1 21.0 25.0 5.0 141 10 10 47
DSB-1314 13/32×7/16 10.3×11.1 23.0 27.0 5.5 141 10 10 57
DSB-1618 1/ 2×9/16 12.7×14.2 28.5 35.0 7.0 179 10 10 113
DSB-1920 19/32×5/ 8 15.0×15.8 33.0 37.0 7.5 186 10 10 140
DSB-2224 11/16×3/ 4 17.4×19.0 39.0 43.0 8.0 209 10 10 198
DSB-2528 25/32×7/ 8 19.8×22.2 43.0 47.0 8.0 216 10 10 230
DSB-3032 15/16×1 23.8×25.4 49.0 55.5 9.5 254 10 10 362
※ Inch/mm conversion chart is available in P489.

CAUTION
314 ● Use spanner suitably fitted with bolt / nut.
● Do not use with extension pipe etc.
