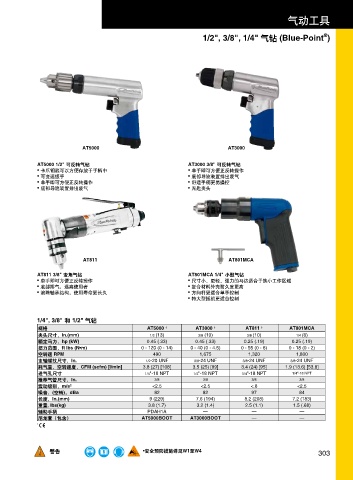

Page 305 - 实耐宝中文2012-CAT1200

气动工具

®
1/2", 3/8", 1/4" 气钻 (Blue-Point )

AT5000 AT3000

AT5000 1/2" 可反转气钻 AT3000 3/8" 可反转气钻
• 卡爪钥匙可以方便存放于手柄中 • 单手即可方便正反转操作
• 可变速扳手 • 底部导流装置排出废气
• 单手即可方便正反转操作 • 舒适手柄更易操控
• 底部导流装置排出废气 • 无匙夹头

AT811 AT801MCA

AT811 3/8" 变角气钻 AT801MCA 1/4" 小型气钻
• 单手即可方便正反转操作 • 尺寸小，更轻，强力的马达适合于狭小工作区域
• 底部排气，远离使用者 • 复合材料外壳耐久度更高
• 滚珠轴承结构，使用寿命更长久 • 方向杆更适合单手控制
• 特大型扳机更适合控制

1/4", 3/8" 和 1/2" 气钻
规格 AT5000 † AT3000 † AT811 † AT801MCA
夹头尺寸，In.(mm) 1/2 (13) 3/8 (10) 3/8 (10) 1/4 (6)
额定马力，hp (kW) 0.45 (.33) 0.45 (.33) 0.25 (.19) 0.25 (.19)
扭力范围，ft lbs (N•m) 0 - 120 (0 - 14) 0 - 40 (0 - 4.5) 0 - 55 (0 - 6) 0 - 18 (0 - 2)
空转速 RPM 490 1,675 1,320 1,800
主轴螺纹尺寸，In. 1/2-20 UNF 3/8-24 UNF 3/8-24 UNF 3/8-24 UNF
耗气量，空转速度，CFM (scfm) [I/min] 3.8 (27) [108] 3.5 (25) [99] 3.4 (24) [95] 1.9 (13.6) [53.8]
进气孔尺寸 1/4"-18 NPT 1/4"-18 NPT 1/4"-18 NPT 1/4"-18 NPT
推荐气管尺寸，In. 3/8 3/8 3/8 3/8
震动级别，m/s² <2.5 <2.5 <.8 <2.5
噪音，(空转)，dBa 82 82 97 84
长度，In.(mm) 9 (229) 7.6 (194) 8.2 (208) 7.2 (183)
重量, Ibs(kg) 3.8 (1.7) 3.2 (1.4) 2.5 (1.1) 1.5 (.68)
辅助手柄 PDAH1A — — —
尼龙套（包含） AT5000BOOT AT3000BOOT — —
†
FALLING
WARNING FIRE FALLING GEARS WARNING XPLOSION FIRE VIBRATEFALLING SHOCK GEARS FIRE VIBRATE SHOCK GEARS TRIANGL E VIBRATE SHOCK TRIANGL E
WARNING TRIANGLE XPLOSION
XPLOSION
警告 •安全预防措施详见W1至W4 303
