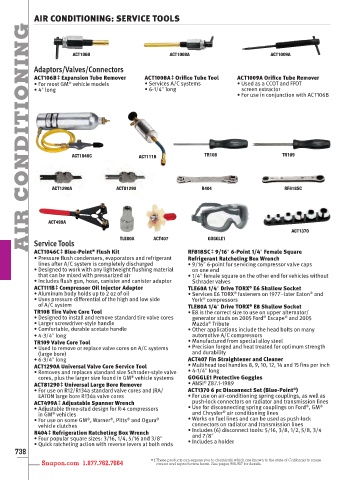

Page 740 - 实耐宝完整US版1500

AIR CONDITIONING: SERVICE TOOLS
CONDITIONING

ACT106B ACT1008A ACT1009A

Adaptors/Valves/Connectors
ACT106B ‡ Expansion Tube Remover ACT1008A ‡ Orifice Tube Tool ACT1009A Orifice Tube Remover
®
• For most GM vehicle models • Services A/C systems • Used as a CCOT and FFOT
• 4ʺ long • 6-1/4ʺ long screen extractor
• For use in conjunction with ACT106B

ACT1046C ACT111B TR108 TR109

ACT1290A ACT81290 R404 RF818SC

AIR Service Tools TLE80A ACT407 GOGGLE1 ACT1370
ACT499A

®
ACT1046C ‡ Blue-Point Flush Kit
Refrigerant Ratcheting Box Wrench
• Pressure flush condensers, evaporators and refrigerant RF818SC ‡ 9/16ʺ 6-Point 1/4ʺ Female Square
lines after A/C system is completely discharged • 9/16ʺ 6-point for servicing compressor valve caps
• Designed to work with any lightweight flushing material on one end
that can be mixed with pressurized air • 1/4ʺ female square on the other end for vehicles without
• Includes flush gun, hose, canister and canister adaptor Schrader valves
ACT111B ‡ Compressor Oil Injector Adaptor TLE60A 1/4ʺ Drive TORX E6 Shallow Socket
®
• Aluminum body holds up to 2 oz of oil • Services E6 TORX fasteners on 1977–later Eaton and
®
®
• Uses pressure differential of the high and low side York compressors
®
of A/C system TLE80A 1/4ʺ Drive TORX E8 Shallow Socket
®
TR108 Tire Valve Core Tool • E8 is the correct size to use on upper alternator/
• Designed to install and remove standard tire valve cores generator studs on 2005 Ford Escape and 2005
®
®
• Larger screwdriver-style handle Mazda Tribute
®
• Comfortable, durable acetate handle • Other applications include the head bolts on many
• 4-3/4ʺ long automotive A/C compressors
TR109 Valve Core Tool • Manufactured from special alloy steel
• Used to remove or replace valve cores on A/C systems • Precision forged and heat treated for optimum strength
(large bore) and durability
• 6-3/4ʺ long ACT407 Fin Straightener and Cleaner
ACT1290A Universal Valve Core Service Tool • Multihead tool handles 8, 9, 10, 12, 14 and 15 fins per inch
• Removes and replaces standard size Schrader-style valve • 4-1/4ʺ long
cores, plus the larger size found in GM vehicle systems GOGGLE1 Protective Goggles
®
®
ACT81290 ‡ Universal Large Bore Remover • ANSI Z87.1-1989
®
• For use on R12/R134a standard valve cores and JRA/ ACT1370 6 pc Disconnect Set (Blue-Point )
EATON large bore R134a valve cores • For use on air-conditioning spring couplings, as well as
ACT499A ‡ Adjustable Spanner Wrench push-lock connectors on radiator and transmission lines
®
®
• Adjustable three-stud design for R-4 compressors • Use for disconnecting spring couplings on Ford , GM
®
®
in GM vehicles and Chrysler air conditioning lines
• For use on some GM , Warner , Pitts and Ogura • Works on fuel lines and can be used as push-lock
®
®
®
®
vehicle clutches connectors on radiator and transmission lines
R404 ‡ Refrigeration Ratcheting Box Wrench • Includes (6) disconnect tools: 5/16, 3/8, 1/2, 5/8, 3/4
and 7/8ʺ
• Four popular square sizes: 3/16, 1/4, 5/16 and 3/8ʺ • Includes a holder
• Quick ratcheting action with reverse levers at both ends
738
• ‡ These products can expose you to chemicals which are known to the state of California to cause
cancer and reproductive harm. See pages 906-907 for details.
