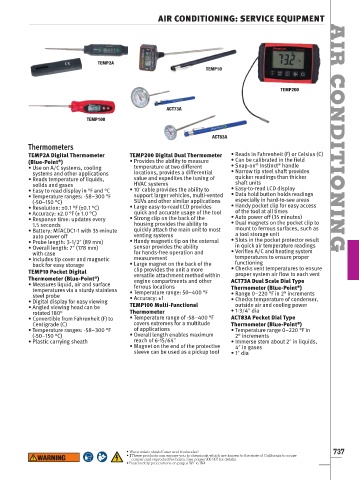

AIR CONDITIONING: SERVICE EQUIPMENT

TEMP2A AIR
TEMP10

TEMP200

ACT73A
TEMP100

ACT83A
Thermometers
TEMP2A Digital Thermometer TEMP200 Digital Dual Thermometer • Reads in Fahrenheit (F) or Celsius (C)
®
(Blue-Point ) • Provides the ability to measure • Can be calibrated in the field CONDITIONING
®
®
• Use on A/C systems, cooling temperature at two different • Snap-on Instinct handle
systems and other applications locations, provides a differential • Narrow tip steel shaft provides
• Reads temperature of liquids, value and expedites the tuning of quicker readings than thicker
solids and gases HVAC systems shaft units
• Easy to read display in °F and °C • 10ʹ cable provides the ability to • Easy-to-read LCD display
• Temperature ranges: -58–300 °F support larger vehicles, multi-vented • Data hold button holds readings
(-50–150 °C) SUVs and other similar applications especially in hard-to-see areas
• Resolution: ±0.1 °F (±0.1 °C) • Large easy-to-read LCD provides • Handy pocket clip for easy access
• Accuracy: ±2.0 °F (± 1.0 °C) quick and accurate usage of the tool of the tool at all times
• Response time: updates every • Strong clip on the back of the • Auto power off (35 minutes)
1.5 seconds housing provides the ability to • Dual magnets on the pocket clip to
• Battery: MTACDC1-1 with 35-minute quickly attach the main unit to most mount to ferrous surfaces, such as
auto power off venting systems a tool storage unit
• Probe length: 3-1/2ʺ (89 mm) • Handy magnetic tip on the external • Slots in the pocket protector result
• Overall length: 7ʺ (178 mm) sensor provides the ability in quick air temperature readings
with case for hands-free operation and • Verifies A/C and heating system
• Includes tip cover and magnetic measurement temperatures to ensure proper
back for easy storage • Large magnet on the back of the functioning
TEMP10 Pocket Digital clip provides the unit a more • Checks vent temperatures to ensure
proper system air flow to each vent
Thermometer (Blue-Point ) versatile attachment method within ACT73A Dual Scale Dial Type
®
engine compartments and other
• Measures liquid, air and surface ferrous locations ®
temperatures via a sturdy stainless • Temperature range: 50–400 °F Thermometer (Blue-Point )
steel probe • Accuracy: ±1 • Range 0–220 °F in 2° increments
• Digital display for easy viewing • Checks temperature of condenser,
• Angled viewing head can be TEMP100 Multi-Functional outside air and cooling power
rotated 180° Thermometer • 1-3/4ʺ dia
• Convertible from Fahrenheit (F) to • Temperature range of -58–400 °F ACT83A Pocket Dial Type
®
Centigrade (C) covers extremes for a multitude Thermometer (Blue-Point )
• Temperature ranges: -58–300 °F of applications • Temperature range 0–220 °F in
(-50–150 °C) • Overall length enables maximum 2° increments
• Plastic carrying sheath reach of 6-15/64ʺ • Immerse stem about 2ʺ in liquids,
• Magnet on the end of the protective 4ʺ in gases
sleeve can be used as a pickup tool • 1ʺ dia

• Wear safety shield (user and bystander) 737
• ‡ These products can expose you to chemicals which are known to the state of California to cause
cancer and reproductive harm. See pages 906-907 for details.
• Read safety precautions on pages W1 to W4
