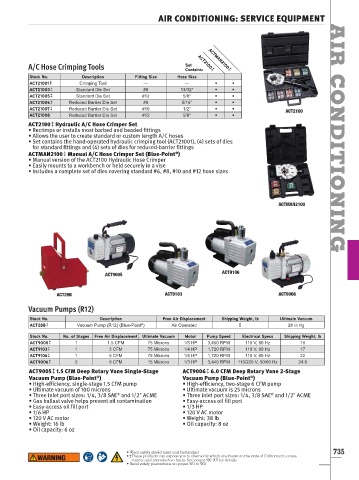

AIR CONDITIONING: SERVICE EQUIPMENT

A/C Hose Crimping Tools Set ACT2100 ‡ AIR
ACTMAN2100 ‡
Contains:
Stock No. Description Fitting Size Hose Size
ACT21001 ‡ Crimping Tool — — • •
ACT21003 ‡ Standard Die Set #8 13/32ʺ • •
ACT21005 ‡ Standard Die Set #12 5/8ʺ • •
ACT21006 ‡ Reduced Barrier Die Set #6 5/16ʺ • •
ACT21007 ‡ Reduced Barrier Die Set #10 1/2ʺ • •
ACT2100
ACT21008 Reduced Barrier Die Set #12 5/8ʺ • •
ACT2100 ‡ Hydraulic A/C Hose Crimper Set
• Recrimps or installs most barbed and beaded fittings
• Allows the user to create standard or custom length A/C hoses
• Set contains the hand-operated hydraulic crimping tool (ACT21001), (4) sets of dies
for standard fittings and (4) sets of dies for reduced-barrier fittings
®
ACTMAN2100 ‡ Manual A/C Hose Crimper Set (Blue-Point )
• Manual version of the ACT2100 Hydraulic Hose Crimper
• Easily mounts to a workbench or held securely in a vise CONDITIONING
• Includes a complete set of dies covering standard #6, #8, #10 and #12 hose sizes

ACTMAN2100

ACT9106
ACT9005

ACT28B ACT9103 ACT9006

Vacuum Pumps (R12)
Stock No. Description Free Air Displacement Shipping Weight, lb Ultimate Vacuum
ACT28B ‡ Vacuum Pump (R12) (Blue-Point ) Air Operated 5 28 in Hg
®
Stock No. No. of Stages Free Air Displacement Ultimate Vacuum Motor Pump Speed Electrical Specs Shipping Weight, lb
ACT9005 ‡ 1 1.5 CFM 75 Microns 1/6 HP 3,450 RPM 110 V, 60 Hz 16
ACT9103 ‡ 1 3 CFM 75 Microns 1/4 HP 1,720 RPM 110 V, 60 Hz 17
ACT9106 ‡ 1 6 CFM 75 Microns 1/4 HP 1,720 RPM 110 V, 60 Hz 22
ACT9006 ‡ 2 6 CFM 15 Microns 1/3 HP 3,440 RPM 110/220 V, 50/60 Hz 24.6
ACT9005 ‡ 1.5 CFM Deep Rotary Vane Single-Stage ACT9006 ‡ 6.0 CFM Deep Rotary Vane 2-Stage
®
®
Vacuum Pump (Blue-Point ) Vacuum Pump (Blue-Point )
• High-efficiency, single-stage 1.5 CFM pump • High-efficiency, two-stage 6 CFM pump
• Ultimate vacuum of 100 microns • Ultimate vacuum is 25 microns
®
®
• Three inlet port sizes: 1/4, 3/8 SAE and 1/2ʺ ACME • Three inlet port sizes: 1/4, 3/8 SAE and 1/2ʺ ACME
• Gas ballast valve helps prevent oil contamination • Easy-access oil fill port
• Easy-access oil fill port • 1/3 HP
• 1/6 HP • 120 V AC motor
• 120 V AC motor • Weight: 38 lb
• Weight: 16 lb • Oil capacity: 8 oz
• Oil capacity: 6 oz
• Wear safety shield (user and bystander) 735
• ‡ These products can expose you to chemicals which are known to the state of California to cause
cancer and reproductive harm. See pages 906-907 for details.
• Read safety precautions on pages W1 to W4
