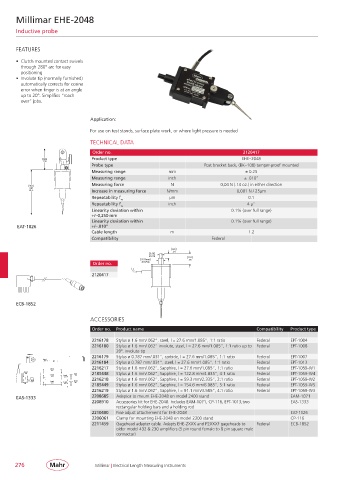

Millimar EHE-2048

Inductive probe
EHE-2048 Millimar ring Instruments
Electrical and Pneumatic Length Measu- Inductive probe
FEATURES

• Clutch mounted contact swivels
through 280° arc for easy
positioning
• Involute tip (normally furnished)
automatically corrects for cosine
error when finger is at an angle
up to 20°. Simplifies “reach
over” jobs.

Application:
For use on test stands, surface plate work, or where light pressure is needed
TECHNICAL DATA

Order no. 2120417
39.6 Product type EHE– 2048
1.56
Probe type Post bracket back, (BK– 108) tamper-proof mounted
Measuring range mm ± 0.25
Measuring range inch ± .010”
Measuring force N 0,04 N (.14 oz.) in either direction
99.2
3.91
REF. Increase in measuring force N/mm 0,001 N / 25µm
Repeatability f w µm 0.1
Repeatability f inch 4 µ”
w
Linearity deviation within 0.1% (over full range)
+/– 0,250 mm
Linearity deviation within 0.1% (over full range)
EAT-1026 +/– .010”
Cable length m 1.2
Compatibility Federal
8.6
.34
5.56
Ø.219 19.1
9.53mm .75
Order no. Ø.375in

2120417

ECB-1852

ACCESSORIES

Order no. Product name Compatibility Product type

2216178 Stylus ø 1.6 mm/.062”, steel, l = 27.6 mm/1.085”, 1:1 ratio Federal EPT-1004
2216180 Stylus ø 1.6 mm/.062” involute, steel, l = 27.6 mm/1.085”, 1:1 ratio up to Federal EPT-1008
20º, involute tip
EAM-1071
2216179 Stylus ø 0.787 mm/.031”, carbide, l = 27.6 mm/1.085”, 1:1 ratio Federal EPT-1007
0.79
2216184 Stylus ø 0.787 mm/.031”, steel, l = 27.6 mm/1.085”, 1:1 ratio Federal EPT-1013
.031
2216217 Stylus ø 1.6 mm/.062”, Sapphire, l = 27.6 mm/1.085”, 1:1 ratio Federal EPT-1059-W1
69.9
2.75
9.53
.375 3.2 2185448 Stylus ø 1.6 mm/.062”, Sapphire, l = 122.8 mm/4.835”, 4:1 ratio Federal EPT-1059-W4
69.9 7.92 .125
2.75 .312
2216218 Stylus ø 1.6 mm/.062”, Sapphire, l = 59.3 mm/2.335”, 2:1 ratio Federal EPT-1059-W2
5.54 69.9 2.75 7.92 4.75 .187
2185449 Stylus ø 1.6 mm/.062”, Sapphire, l = 154.6 mm/6.085”, 5:1 ratio Federal EPT-1059-W5
.218 .312
2216219 Stylus ø 1.6 mm/.062”, Sapphire, l = 91.1 mm/3.585”, 4:1 ratio Federal EPT-1059-W3
EAS-1333 2208685 Adaptor to mount EHE-2048 on model 2400 stand EAM-1071
2208910 Accessories kit for EHE-2048. Includes EAM-1071, CP-116, EPT-1013,two EAS-1333
rectangular holding bars and a holding rod
2210400 Fine adjust attachememt for EHE-2048 EAT-1026
2206061 Clamp for mounting EHE-2048 on model 2300 stand CP-116
2211459 Gagehead adapter cable. Adapts EHE-2XXX and P2XXXF gageheads to Federal ECB-1852
older model 432 & 230 amplifiers (5 pin round female to 8 pin square male
connector)
276 Millimar | Electrical Length Measuring Instruments
