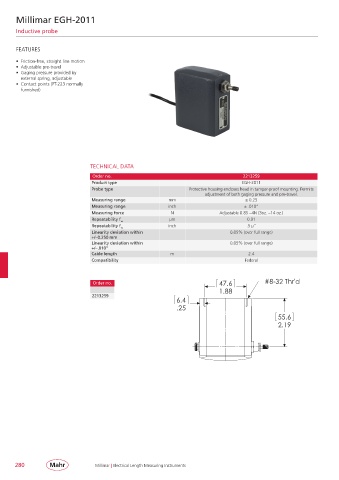

Millimar EGH-2011

Inductive probe
EGH-2011 Millimar ring Instruments
Electrical and Pneumatic Length Measu- Inductive probe
FEATURES

• Friction-free, straight line motion
• Adjustable pre-travel
• Gaging pressure provided by
external spring, adjustable
• Contact points (PT-223 normally
furnished)

TECHNICAL DATA
Order no. 2213259
Product type EGH-2011
Probe type Protective housing encloses head in tamper-proof mounting. Permits
adjustment of both gaging pressure and pre-travel.
Measuring range mm ± 0.25
Measuring range inch ± .010”
Measuring force N Adjustable 0.85 – 4N (3oz. – 14 oz.)
Repeatability f w µm 0.01
Repeatability f inch .5 µ”
w
Linearity deviation within 0.05% (over full range)
+/– 0.250 mm
Linearity deviation within 0.05% (over full range)
+/– .010”
Cable length m 2.4
Compatibility Federal

Order no. 47.6 #8-32 Thr'd
1.88
2213259
6.4
.25
55.6
2.19
