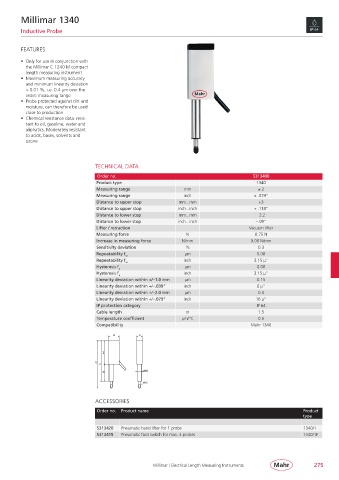

Millimar 1340

Inductive Probe

FEATURES

• Only for use in conjunction with
the Millimar C 1240 M compact
length measuring instrument
• Maximum measuring accuracy
and minimum linearity deviation
< 0.01 %, i.e. 0.4 μm over the
entire measuring range
• Probe protected against dirt and
moisture, can therefore be used
close to production
• Chemical resistance data: resis-
tant to oil, gasoline, water and
aliphatics. Moderately resistant
to acids, bases, solvents and
ozone

TECHNICAL DATA
Order no. 5313400
Product type 1340
Measuring range mm ± 2
Measuring range inch ± .079“
Distance to upper stop mm...mm +3
Distance to upper stop inch...inch + .118“
Distance to lower stop mm...mm – 2.2
Distance to lower stop inch...inch – .09“
Lifter / retraction Vacuum lifter
Measuring force N 0.75 N
Increase in measuring force N/mm 0.08 N/mm
Sensitivity deviation % 0.3
Repeatability f µm 0.08
w
Repeatability f w inch 3.15 µ“
Hysteresis f µm 0.08
u
Hysteresis f inch 3.15 µ“
u
Linearity deviation within +/– 1.0 mm µm 0.15
Linearity deviation within +/– .039“ inch 6 µ“
Linearity deviation within +/– 2.0 mm µm 0.4
Linearity deviation within +/– .079“ inch 16 µ“
IP protection category IP 64
Cable length m 1.5
Temperature coefficient µm/°C 0.6
Compatibility Mahr 1340
20 12

44
87
74
ø8h6
30
M2,5

ACCESSORIES

Order no. Product name Product
type

5313420 Pneumatic hand lifter for 1 probe 1340/1
5313419 Pneumatic foot switch for max. 4 probes 1340/1F

Millimar | Electrical Length Measuring Instruments 275
