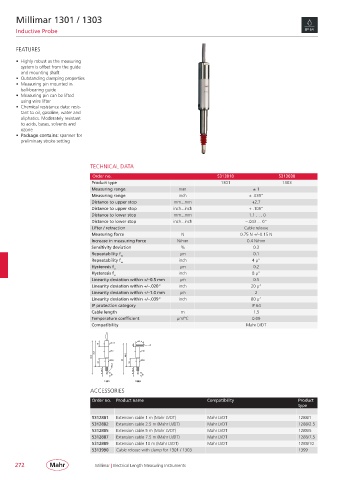

Millimar 1301 / 1303

Inductive Probe

FEATURES

• Highly robust as the measuring
system is offset from the guide
and mounting shaft
• Outstanding clamping properties
• Measuring pin mounted in
ball-bearing guide
• Measuring pin can be lifted
using wire lifter
• Chemical resistance data: resis-
tant to oil, gasoline, water and
aliphatics. Moderately resistant
to acids, bases, solvents and
ozone
• Package contains: spanner for
preliminary stroke setting

TECHNICAL DATA
Order no. 5313010 5313030
Product type 1301 1303
Measuring range mm ± 1
Measuring range inch ± .039“
Distance to upper stop mm...mm +2.7
Distance to upper stop inch...inch + .106“
Distance to lower stop mm...mm – 1.1 . . . 0
Distance to lower stop inch...inch – .043 ... 0“
Lifter / retraction Cable release
Measuring force N 0.75 N +/– 0.15 N
Increase in measuring force N/mm 0.4 N/mm
Sensitivity deviation % 0.3
Repeatability f µm 0.1
w
Repeatability f w inch 4 µ“
Hysteresis f µm 0.2
u
Hysteresis f inch 8 µ“
u
Linearity deviation within +/– 0.5 mm µm 0.5
Linearity deviation within +/– .020“ inch 20 µ“
Linearity deviation within +/– 1.0 mm µm 2
Linearity deviation within +/– .039“ inch 80 µ“
IP protection category IP 64
Cable length m 1.5
Temperature coefficient µm/°C 0.09
Compatibility Mahr LVDT

ACCESSORIES
Order no. Product name Compatibility Product
type

5312881 Extension cable 1 m (Mahr LVDT) Mahr LVDT 1288/1
5312882 Extension cable 2.5 m (Mahr LVDT) Mahr LVDT 1288/2.5
5312885 Extension cable 5 m (Mahr LVDT) Mahr LVDT 1288/5
5312887 Extension cable 7.5 m (Mahr LVDT) Mahr LVDT 1288/7.5
5312889 Extension cable 10 m (Mahr LVDT) Mahr LVDT 1288/10
5313990 Cable release with clamp for 1301 / 1303 1399

272 Millimar | Electrical Length Measuring Instruments
