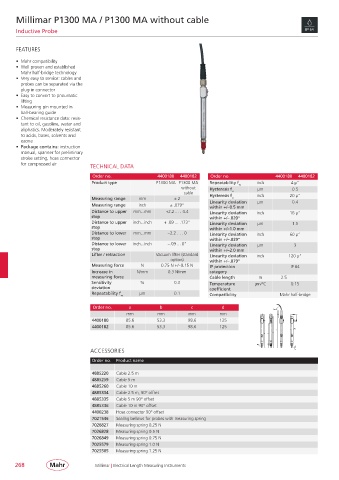

Millimar P1300 MA / P1300 MA without cable

Inductive Probe

FEATURES

• Mahr compatibility
• Well proven and established
Mahr half-bridge technology
• Very easy to service: cables and
probes can be separated via the
plug in connector
• Easy to convert to pneumatic
lifting
• Measuring pin mounted in
ball-bearing guide
• Chemical resistance data: resis-
tant to oil, gasoline, water and
aliphatics. Moderately resistant
to acids, bases, solvents and
ozone
• Package contains: instruction
manual, spanner for preliminary
stroke setting, hose connector
for compressed air
TECHNICAL DATA
Order no. 4400180 4400182 Order no. 4400180 4400182
Product type P1300 MA P1300 MA Repeatability f w inch 4 µ“
without Hysteresis f µm 0.5
cable Hysteresis f u inch 20 µ“
Measuring range mm ± 2 u
Measuring range inch ± .079“ Linearity deviation µm 0.4
within +/– 0.5 mm
Distance to upper mm...mm +2.2 . . . 4.4 Linearity deviation inch 16 µ“
stop within +/– .020“
Distance to upper inch...inch + .09 ... .173“ Linearity deviation µm 1.5
stop within +/– 1.0 mm
Distance to lower mm...mm – 2.2 . . . 0 Linearity deviation inch 60 µ“
stop within +/– .039“
Distance to lower inch...inch – .09 ... 0“ Linearity deviation µm 3
stop within +/– 2.0 mm
Lifter / retraction Vacuum lifter (standard Linearity deviation inch 120 µ“
option) within +/– .079“
Measuring force N 0.75 N +/– 0.15 N IP protection IP 64
Increase in N/mm 0.3 N/mm category
measuring force Cable length m 2.5
Sensitivity % 0.3 Temperature µm/°C 0.15
deviation coefficient
Repeatability f w µm 0.1 Compatibility Mahr half-bridge

Order no. a b c d
mm mm mm mm
4400180 85.6 53.3 98.6 125
4400182 85.6 53.3 98.6 125
d
c
a b
ACCESSORIES
Order no. Product name

4885220 Cable 2.5 m
4885259 Cable 5 m
4885260 Cable 10 m
4885334 Cable 2.5 m, 90° offset
4885335 Cable 5 m 90° offset
4885336 Cable 10 m 90° offset
4400238 Hose connector 90° offset
7021546 Sealing bellows for probes with measuring spring
7026827 Measuring spring 0.25 N
7026828 Measuring spring 0.5 N
7026849 Measuring spring 0.75 N
7025579 Measuring spring 1.0 N
7025505 Measuring spring 1.25 N
