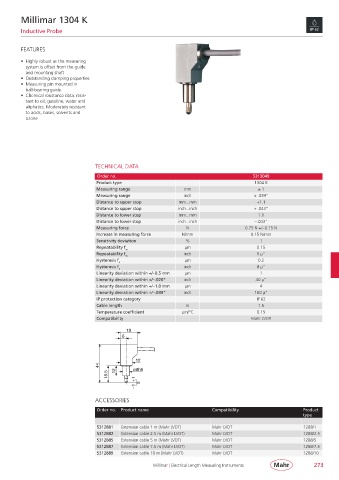

Millimar 1304 K

Inductive Probe

FEATURES

• Highly robust as the measuring
system is offset from the guide
and mounting shaft
• Outstanding clamping properties
• Measuring pin mounted in
ball-bearing guide
• Chemical resistance data: resis-
tant to oil, gasoline, water and
aliphatics. Moderately resistant
to acids, bases, solvents and
ozone

TECHNICAL DATA
Order no. 5313049
Product type 1304 K
Measuring range mm ± 1
Measuring range inch ± .039“
Distance to upper stop mm...mm +1.1
Distance to upper stop inch...inch + .043“
Distance to lower stop mm...mm 1.1
Distance to lower stop inch...inch – .043“
Measuring force N 0.75 N +/– 0.15 N
Increase in measuring force N/mm 0.15 N/mm
Sensitivity deviation % 1
Repeatability f µm 0.15
w
Repeatability f inch 6 µ“
w
Hysteresis f u µm 0.2
Hysteresis f inch 8 µ“
u
Linearity deviation within +/– 0.5 mm µm 1
Linearity deviation within +/– .020“ inch 40 µ“
Linearity deviation within +/– 1.0 mm µm 4
Linearity deviation within +/– .039“ inch 160 µ“
IP protection category IP 62
Cable length m 1.5
Temperature coefficient µm/°C 0.15
Compatibility Mahr LVDT

19
6

12
44 ø8h6
18,5 12
−1 +1 0

ACCESSORIES
Order no. Product name Compatibility Product
type

5312881 Extension cable 1 m (Mahr LVDT) Mahr LVDT 1288/1
5312882 Extension cable 2.5 m (Mahr LVDT) Mahr LVDT 1288/2.5
5312885 Extension cable 5 m (Mahr LVDT) Mahr LVDT 1288/5
5312887 Extension cable 7.5 m (Mahr LVDT) Mahr LVDT 1288/7.5
5312889 Extension cable 10 m (Mahr LVDT) Mahr LVDT 1288/10
Millimar | Electrical Length Measuring Instruments 273
