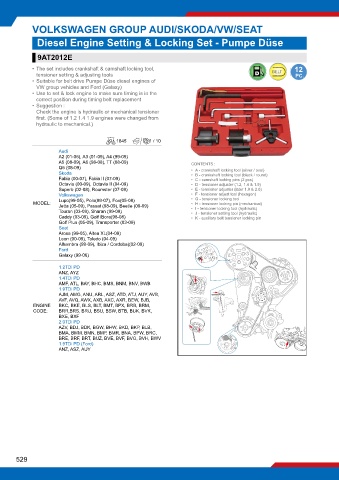

VOLKSWAGEN GROUP AUDI/SKODA/VW/SEAT

Diesel Engine Setting & Locking Set - Pumpe Düse

9AT2012E

• The set includes crankshaft & camshaft locking tool, 12
tensioner setting & adjusting tools D BELT PC.
• Suitable for belt drive Pumpe Düse diesel engines of
VW group vehicles and Ford (Galaxy)
• Use to set & lock engine to make sure timing is in the
correct position during timing belt replacement
• Suggestion :
Check the engine is hydraulic or mechanical tensioner
first. (Some of 1.2 1.4 1.9 engines were changed from
hydraulic to mechanical.)

g 1845 1 / 10
Audi
A2 (01-06), A3 (01-09), A4 (99-09)
A5 (08-09), A6 (98-08), TT (08-09) CONTENTS :
Q5 (08-09) • A - crankshaft locking tool (silver / oval)
Skoda • B - crankshaft locking tool (black / round)
Fabia (00-07), Fabia II (07-09) • C - camshaft locking pins (2 pcs)
Octavia (00-09), Octavia II (04-09) • D - tensioner adjuster (1.2, 1.4 & 1.9)
Superb (02-08), Roomster (07-09) • E - tensioner adjuster (later 1.9 & 2.0)
Volkswagen • F - tensioner adjust tool (hexagon)
Lupo(99-05), Polo(99-07), Fox(05-08) • G - tensioner locking tool
MODEL: • H - tensioner locking pin (mechanical)
Jetta (05-09), Passat (98-09), Beetle (00-09)
Touran (03-09), Sharan (99-09) • I - tensioner locking tool (hydraulic)
• J - tensioner setting tool (hydraulic)
Caddy (03-09), Golf /Bora(98-08) • K - auxiliary belt tensioner locking pin
Golf Plus (05-09), Transporter (03-09)
Seat
Arosa (99-05), Altea XL(04-09)
Leon (00-09), Toledo (04-09)
Alhambra (99-09), Ibiza / Cordoba)(02-09)
Ford
Galaxy (99-06)

1.2TDi PD
ANZ, AYZ
1.4TDi PD
AMF, ATL, BAY, BHC, BMS, BNM, BNV, BWB
1.9TDi PD
AJM, AMG, ANU, ARL, ASZ, ATD, ATJ, AUY, AVB,
AVF, AVQ, AWX, AXB, AXC, AXR, BEW, BJB,
ENGINE BKC, BKE, BLS, BLT, BMT, BPX, BRB, BRM,
CODE: BRR,BRS, BRU, BSU, BSW, BTB, BUK, BVK,
BXE, BXF
2.0TDi PD
AZV, BDJ, BDK, BGW, BHW, BKD, BKP, BLB,
BMA, BMM, BMN, BMP, BMR, BNA, BPW, BRC,
BRE, BRF, BRT, BUZ, BVE, BVF, BVG, BVH, BWV
1.9TDi PD (Ford)
ANZ, ASZ, AUY

529
