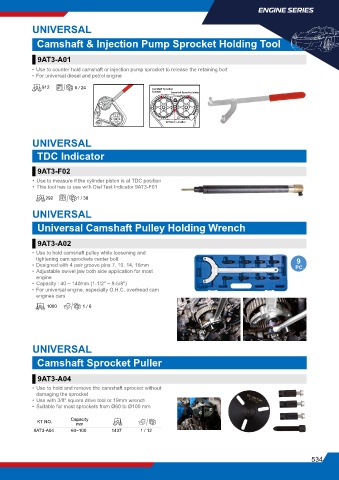

ENGINE SERIES

UNIVERSAL

Camshaft & Injection Pump Sprocket Holding Tool

9AT3-A01
• Use to counter hold camshaft or injection pump sprocket to release the retaining bolt
• For universal diesel and petrol engine
g 912 SET 6 / 24 Camshaft Sprocket
Exhaust Camshaft Sprocket Intake

1/2 Notch Location

UNIVERSAL

TDC Indicator

9AT3-F02

• Use to measure if the cylinder piston is at TDC position
• This tool has to use with Dial Test Indicator 9AT3-F01
g 292 SET 1 / 30

UNIVERSAL
Universal Camshaft Pulley Holding Wrench

9AT3-A02

• Use to hold camshaft pulley while loosening and
tightening cam sprockets center bolt 9
• Designed with 4 pair groove pins 7, 10, 14, 16mm PC.
• Adjustable swivel jaw both side application for most
engine
• Capacity : 40 ~ 140mm (1-1/2" ~ 8-5/8")
• For universal engine, especially O.H.C. overhead cam
engines cars
g 1000 1 / 6

UNIVERSAL

Camshaft Sprocket Puller

9AT3-A04
• Use to hold and remove the camshaft sprocket without
damaging the sprocket
• Use with 3/8" square drive tool or 19mm wrench
• Suitable for most sprockets from Ø60 to Ø100 mm

KT NO. Capacity g
mm
9AT3-A04 60~100 1437 1 / 12

534
