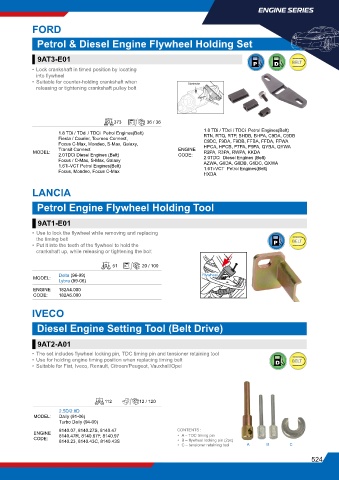

Page 565 - 蓝带金统立KINGTONY2025年样本

ENGINE SERIES

FORD

Petrol & Diesel Engine Flywheel Holding Set

9AT3-E01
P D BELT
• Lock crankshaft in timed position by locating
into flywheel
• Suitable for counter-holding crankshaft when Startmotor
releasing or tightening crankshaft pulley bolt

g 373 SET 36 / 36
1.8 TDi / TDdi / TDCi Petrol Engines(Belt)
1.8 TDi / TDdi / TDCi Petrol Engines(Belt) RTN, RTQ, RTP, BHDB, BHPA, C9DA, C9DB
Fiesta / Courier, Tourneo Connect, C9DC, F9DA, F9DB, FFBA, FFDA, FFWA
Focus C-Max, Mondeo, S-Max, Galaxy,
Transit Connect ENGINE HPCA, HPCB, P7PA, P9PA, QYBA, QYWA
MODEL: 2.0TDCi Diesel Engines (Belt) CODE: R2PA, R3PA, RWPA, KKDA
Focus / C-Max, S-Max, Galaxy 2.0TDCi Diesel Engines (Belt)
AZWA, G6DA, G6DB, G6DC, QXWA
1.6Ti-VCT Petrol Engines(Belt) 1.6Ti-VCT Petrol Engines(Belt)
Focus, Mondeo, Focus C-Max
HXDA

LANCIA

Petrol Engine Flywheel Holding Tool

9AT1-E01
• Use to lock the flywheel while removing and replacing
the timing belt BELT
• Put it into the teeth of the flywheel to hold the P
crankshaft up, while releasing or tightening the bolt

g 51 SET 20 / 100

Delta (96-99) Flywheel
MODEL:
Lybra (99-06)
ENGINE 182A4.000
CODE: 182A6.000

IVECO

Diesel Engine Setting Tool (Belt Drive)

9AT2-A01

• The set includes flywheel locking pin, TDC timing pin and tensioner retaining tool
• Use for holding engine timing position when replacing timing belt D BELT
• Suitable for Fiat, Iveco, Renault, Citroen/Peugeot, Vauxhall/Opel

g 112 12 / 120
2.5D/2.8D
MODEL: Daily (91-06)
Turbo Daily (94-00)
8140.07, 8140.27S, 8140.47 CONTENTS :
ENGINE 8140.47R, 8140.67F, 8140.97 • A – TDC timing pin
CODE:
8140.23, 8140.43C, 8140.43S • B – flywheel locking pin (2pc)
• C – tensioner retaining tool A B C
524
