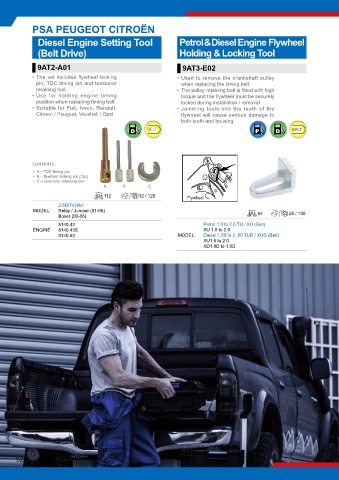

PSA PEUGEOT CITROËN

Diesel Engine Setting Tool Petrol & Diesel Engine Flywheel
(Belt Drive) Holding & Locking Tool

9AT2-A01 9AT3-E02
• The set includes flywheel locking • Used to remove the crankshaft pulley
pin, TDC timing pin and tensioner when replacing the timing belt
retaining tool • The pulley retaining bolt is fitted with high
• Use for holding engine timing torque and the flywheel must be securely
position when replacing timing belt locked during installation / removal
• Suitable for Fiat, Iveco, Renault, • Jamming tools into the teeth of the
Citroen / Peugeot, Vauxhall / Opel flywheel will cause serious damage to
both teeth and housing
D BELT P D BELT

CONTENTS :
• A – TDC timing pin
• B – flywheel locking pin (2pc)
• C – tensioner retaining tool
A B C
g 112 12 / 120 Flywheel
2.8D/Tdi/Hdi
MODEL: Relay / Jumper (01-06) g
Boxer (00-06) 64 25 / 100
8140.43 Petrol 1.0 to 2.0 TU / XU (Belt)
ENGINE 8140.43S XU 1.6 to 2.0
8140.63 MODEL: Diesel 1.50 to 2 .50 TUD / XUD (Belt)
XU1.6 to 2.0
XD1.8D to 1.9D
