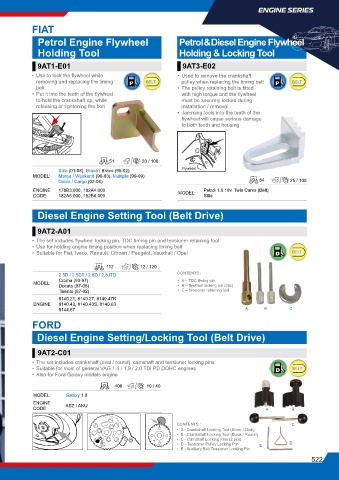

Page 563 - 蓝带金统立KINGTONY2025年样本

ENGINE SERIES

FIAT

Petrol Engine Flywheel Petrol & Diesel Engine Flywheel
Holding Tool Holding & Locking Tool

9AT1-E01 9AT3-E02

• Use to lock the flywheel while • Used to remove the crankshaft
removing and replacing the timing P BELT pulley when replacing the timing belt P BELT
belt • The pulley retaining bolt is fitted
• Put it into the teeth of the flywheel with high torque and the flywheel
to hold the crankshaft up, while must be securely locked during
releasing or tightening the bolt installation / removal
• Jamming tools into the teeth of the
flywheel will cause serious damage
to both teeth and housing
Fly wheel
Fly wheel
Fly wheel

g 51 20 / 100

Stilo (01-08), Brava / Bravo (95-02) Flywheel
MODEL: Marea / Weekend (96-03), Multipla (99-09)
Doblo / Cargo (02-06) g 64 25 / 100
ENGINE 178B3.000, 182A4.000 MODEL: Petrol 1.6 16v. Twin Cams (Belt)
CODE: 182A6.000, 182B6.000 Stilo

Diesel Engine Setting Tool (Belt Drive)

9AT2-A01
• The set includes flywheel locking pin, TDC timing pin and tensioner retaining tool
• Use for holding engine timing position when replacing timing belt
• Suitable for Fiat, Iveco, Renault, Citroen / Peugeot, Vauxhall / Opel D BELT

g 112 12 / 120
2.5D / 2.5DT / 2.8D / 2.8JTD CONTENTS :
Croma (93-97) • A – TDC timing pin
MODEL:
Ducato (87-06) • B – flywheel locking pin (2pc)
Talento (87-02) • C – tensioner retaining tool
8140.21, 8140.27, 8140.47R
ENGINE 8140.43, 8140.43S, 8140.63
8144.67 A B C

FORD
Diesel Engine Setting/Locking Tool (Belt Drive)

9AT2-C01

• The set includes crankshaft (oval / round), camshaft and tensioner locking pins
• Suitable for most of general VAG 1.4 / 1.9 / 2.0 TDi PD DOHC engines D BELT
• Also for Ford Galaxy models engine

g 408 10 / 40
MODEL: Galaxy 1.9
ENGINE ASZ / ANU
CODE: A B

CONTENTS : C
• A - Crankshaft Locking Tool (Silver / Oval)
• B - Crankshaft Locking Tool (Black / Round)
• C - Camshaft Locking Pins (2 pcs)
• D - Tensioner Pulley Locking Pin E D
• E - Auxiliary Belt Tensioner Locking Pin
522
