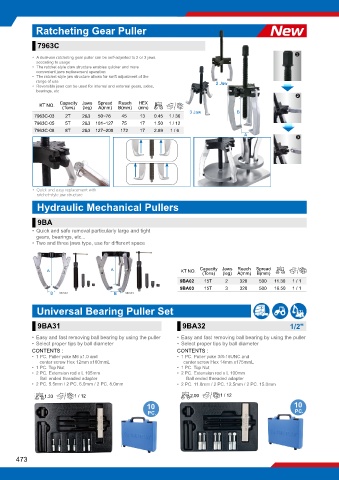

Ratcheting Gear Puller

7963C

1
• A dual-use ratcheting gear puller can be self-adjusted to 2 or 3 jaws
according to usage
• The ratchet-style claw structure enables quicker and more
convenient jaws replacement operation
• The ratchet-style jaw structure allows for swift adjustment of the
range of use 2 Jaw
• Reversible jaws can be used for internal and external gears, axles,
bearings, etc
2
HEX
KT NO. Capacity Jaws Spread Reach (mm) kg
(Tons)
A(mm)
(leg)
B(mm)
3 Jaw B
7963C-03 2T 2&3 50~76 45 13 0.45 1 / 36
7963C-05 5T 2&3 101~127 75 17 1.50 1 / 12
7963C-08 8T 2&3 127~200 172 17 2.89 1 / 6
A
3

• Quick and easy replacement with
ratchet-style jaw structure
Hydraulic Mechanical Pullers

9BA
• Quick and safe removal particularly large and tight
gears, bearings, etc…
• Two and three jaws type, use for different space

A A KT NO. Capacity Jaws Reach Spread kg
(leg)
A(mm)
(Tons)
B(mm)
9BA02 15T 2 320 500 11.30 1 / 1
9BA03 15T 3 320 500 16.50 1 / 1
B 9BA02 B 9BA03
Universal Bearing Puller Set

9BA31 9BA32 1/2"

• Easy and fast removing ball bearing by using the puller • Easy and fast removing ball bearing by using the puller
• Select proper tips by ball diameter • Select proper tips by ball diameter
CONTENTS : CONTENTS :
• 1 PC. Puller yoke M6 x1.0 and • 1 PC. Puller yoke 3/8-16UNC and
center screw Hex 12mm x160mmL center screw Hex 14mm x175mmL
• 1 PC. Top Nut • 1 PC. Top Nut
• 2 PC. Extension rod x L 105mm • 2 PC. Extension rod x L 100mm
Ball ended threaded adapter Ball ended threaded adapter
• 2 PC. 5.5mm / 2 PC. 6.0mm / 2 PC. 8.0mm • 2 PC. 11.0mm / 2 PC. 12.5mm / 2 PC. 15.0mm
Kg 1.33 1 / 12 Kg 2.00 1 / 12
10 10
PC. PC.

473
