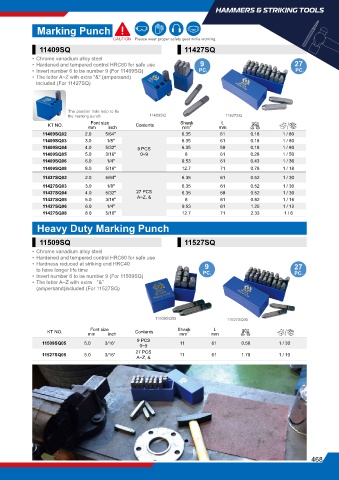

Page 509 - 蓝带金统立KINGTONY2025年样本

HAMMERS & STRIKING TOOLS

Marking Punch

CAUTION Please wear proper safety gear while working.
11409SQ 11427SQ
• Chrome vanadium alloy steel
• Hardened and tempered control HRC60 for safe use 9 27
• Invert number 6 to be number 9 (For 11409SQ) PC. PC.
• The letter A~Z with extra "&" (ampersand)
included (For 11427SQ)

The position hole help to fix
the marking punch 11409SQ 11427SQ
L
Font size
KT NO. mm inch Contents Shank mm Kg
2
mm
11409SQ02 2.0 5/64" 6.35 61 0.18 1 / 80
11409SQ03 3.0 1/8" 6.35 61 0.18 1 / 80
11409SQ04 4.0 5/32" 9 PCS 6.35 59 0.18 1 / 80
11409SQ05 5.0 3/16" 0~9 8 61 0.28 1 / 50
11409SQ06 6.0 1/4" 9.53 61 0.43 1 / 36
11409SQ08 8.0 5/16" 12.7 71 0.78 1 / 18
11427SQ02 2.0 5/64" 6.35 61 0.52 1 / 30
11427SQ03 3.0 1/8" 6.35 61 0.52 1 / 30
11427SQ04 4.0 5/32" 27 PCS 6.35 59 0.52 1 / 30
11427SQ05 5.0 3/16" A~Z, & 8 61 0.82 1 / 16
11427SQ06 6.0 1/4" 9.53 61 1.25 1 / 12
11427SQ08 8.0 5/16" 12.7 71 2.33 1 / 6

Heavy Duty Marking Punch

11509SQ 11527SQ
• Chrome vanadium alloy steel
• Hardened and tempered control HRC60 for safe use
• Hardness reduced at striking end HRC40 9 27
to have longer life time
• Invert number 6 to be number 9 (For 11509SQ) PC. PC.
• The letter A~Z with extra “&”
(ampersand)included (For 11527SQ)

11509SQ05 11527SQ05

L
Font size
KT NO. mm inch Contents Shank mm Kg
2
mm
9 PCS
11509SQ05 5.0 3/16" 11 61 0.56 1 / 30
0~9
11527SQ05 5.0 3/16" 27 PCS 11 61 1.70 1 / 10
A~Z, &

468
