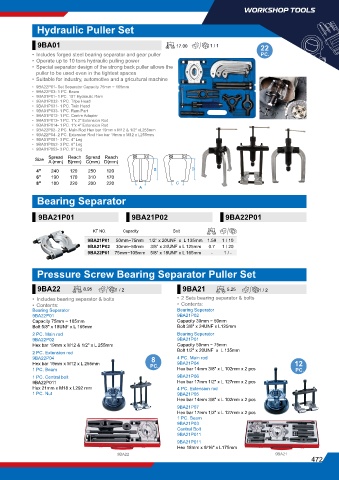

Page 513 - 蓝带金统立KINGTONY2025年样本

WORKSHOP TOOLS

Hydraulic Puller Set

9BA01 kg 17.00 1 / 1 22
• Includes forged steel bearing separator and gear puller PC.
• Operate up to 10 tons hydraulic pulling power
• Special separator design of the strong back puller allows the
puller to be used even in the tightest spaces
• Suitable for industry, automotive and a gricultural machine
• 9BA22P01- Set Separator Capacity 75mm ~ 105mm
• 9BA22P03- 1 PC. Beam
• 9BA01P01- 1 PC. 10T Hydraulic Ram
• 9BA01P032- 1 PC. Tripe Head
• 9BA01P031- 1 PC. Twin Head
• 9BA01P033- 1 PC. Ram Part
• 9BA01P012- 1 PC. Centre Adapter
• 9BA01P013- 1 PC. 1"x 2" Extension Rod
• 9BA01P014- 1 PC. 1"x 4" Extension Rod
• 9BA22P02- 2 PC. Main Rod Hex bar 19mm x M12 & 1/2" xL255mm
• 9BA22P04- 2 PC. Extension Rod Hex bar 19mm x M12 x L255mm
• 9BA01P051- 3 PC. 4" Leg
• 9BA01P052- 3 PC. 6" Leg
• 9BA01P053- 3 PC. 8" Leg
Size Spread Reach Spread Reach
B(mm) C(mm) D(mm)
A (mm)
4" 240 120 250 120 B D
6" 190 170 310 170
8" 180 220 200 220 C
A
Bearing Separator

9BA21P01 9BA21P02 9BA22P01

KT NO. Capacity Bolt kg
9BA21P01 50mm~75mm 1/2" x 20UNF x L 135mm 1.59 1 / 10
9BA21P02 30mm~50mm 3/8" x 24UNF x L 125mm 0.7 1 / 20
9BA22P01 75mm~105mm 5/8" x 18UNF x L 165mm - 1 / -

Pressure Screw Bearing Separator Puller Set

9BA22 kg 8.95 1 / 2 9BA21 kg 5.25 1 / 2

• Includes bearing separator & bolts • 2 Sets bearing separator & bolts
• Contents: • Contents:
Bearing Seperator Bearing Seperator
9BA22P01 9BA21P02
Capacity 75mm ~ 105mm Capacity 30mm ~ 50mm
Bolt 5/8" x 18UNF x L 165mm Bolt 3/8" x 24UNF x L125mm
2 PC. Main rod Bearing Seperator
9BA22P02 9BA21P01
Hex bar 19mm x M12 & 1/2" x L 255mm Capacity 50mm ~ 75mm
2 PC. Extension rod Bolt 1/2" x 20UNF x L 135mm
9BA22P04 8 4 PC. Main rod
Hex bar 19mm x M12 x L 255mm PC. 9BA21P04 12
1 PC. Beam Hex bar 14mm 3/8" x L 102mm x 2 pcs PC.
1 PC. Central bolt 9BA21P06
9BA22P011 Hex bar 17mm 1/2" x L 127mm x 2 pcs
Hex 21mm x M18 x L292 mm 4 PC. Extension rod
1 PC. Nut 9BA21P05
Hex bar 14mm 3/8" x L 102mm x 2 pcs
9BA21P07
Hex bar 17mm 1/2" x L 127mm x 2 pcs
1 PC. Beam
9BA21P03
Central Bolt
9BA21P011
9BA21P011
Hex 18mm x 9/16" x L175mm
9BA22 9BA21
472
