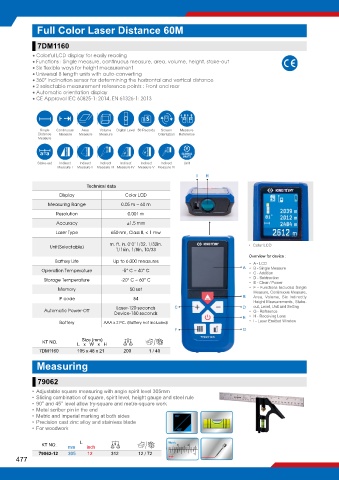

Full Color Laser Distance 60M

7DM1160
• Colorful LCD display for easily reading
• Functions : Single measure, continuous measure, area, volume, height, stake-out
• Six flexible ways for height measurement
• Universal 8 length units with auto-converting
• 360° inclination sensor for determining the horizontal and vertical distance
• 2 selectable measurement reference points : Front and rear
• Automatic orientation display
• CE Approval IEC 60825-1: 2014, EN 61326-1: 2013

s

Single Continuous Area Volume Digital Level 50 Records Screen Measure
Distance Measure Measure Measure Orientation Reference
Measure
8
a=a GLOBAL
UNITS
Stake-out Indirect Indirect Indirect Indirect Indirect Indirect Unit
Measure I Measure II Measure III Measure IV Measure V Measure VI
I H
Technical data
Display Color LCD
Measuring Range 0.05 m ~ 60 m
Resolution 0.001 m
Accuracy ±1.5 mm
Laser Type 650 nm, Class II, < 1 mw

Unit(Selectable) m, ft, in, 0’0”1/32, 1/32in, • Color LCD
1/16in, 1/8in, 10/33
Overview for device :
Battery Life Up to 6,000 measures • A - LCD
A • B - Single Measure
Operation Temperature -5° C ~ 40° C
• C - Addition
• D - Subtraction
Storage Temperature -20° C ~ 60° C
• E - Clear / Power
Memory 50 set • F - Functions Included Single
Measure, Continuous Measure,
IP code 54 B Area, Volume, Six Indirectly
Height Measurements, Stake-
Laser-120 seconds C D out, Level, Unit and Setting
Automatic Power-Off • G - Reference
Device-180 seconds
E • H - Receiving Lens
Battery AAA x 2 PC. (Battery not included) • I - Laser Emitted Window
F G
Size (mm)
KT NO. L x W x H g
7DM1160 105 x 48 x 21 200 1 / 40

Measuring

79062

• Adjustable square measuring with angle spirit level 305mm
• Sliding combination of square, spirit level, height gauge and steel rule
• 90° and 45° level allow try-square and metre-square work
• Metal scriber pin in the end
• Metric and imperial marking at both sides
• Precision cast zinc alloy and stainless blade
• For woodwork

L
KT NO. mm inch g
79062-12 305 12 312 12 / 72
