P. 360

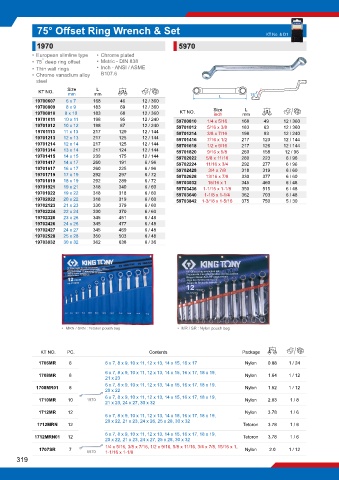

75° Offset Ring Wrench & Set KT No. & D1
1970 5970
• European slimline type • Chrome plated
°
• 75 deep ring offset • Metric - DIN 838
• Thin wall rings • Inch - ANSI / ASME
• Chrome vanadium alloy B107.6
steel
L
KT NO. Size mm g 75˚
mm
19700607 6 x 7 168 46 12 / 360 L
19700809 8 x 9 183 69 12 / 360 Size L
19700810 8 x 10 183 68 12 / 360 KT NO. inch mm g
19701011 10 x 11 198 95 12 / 240 59700810 1/4 x 5/16 168 49 12 / 360
19701012 10 x 12 198 87 12 / 240 59701012 5/16 x 3/8 183 63 12 / 360
19701113 11 x 13 217 129 12 / 144 59701214 3/8 x 7/16 198 93 12 / 240
19701213 12 x 13 217 125 12 / 144 59701416 7/16 x 1/2 217 123 12 / 144
19701214 12 x 14 217 125 12 / 144 59701618 1/2 x 9/16 217 126 12 / 144
19701314 13 x 14 217 124 12 / 144 59701820 9/16 x 5/8 260 158 12 / 96
19701415 14 x 15 239 175 12 / 144 59702022 5/8 x 11/16 260 223 6 / 96
19701417 14 x 17 260 191 6 / 96 59702224 11/16 x 3/4 292 277 6 / 96
19701617 16 x 17 260 225 6 / 96 59702428 3/4 x 7/8 318 319 6 / 60
19701719 17 x 19 292 297 6 / 72 59702628 13/16 x 7/8 330 377 6 / 60
19701819 18 x 19 292 289 6 / 72 59703032 15/16 x 1 345 460 6 / 48
19701921 19 x 21 318 340 6 / 60 59703436 1-1/16 x 1-1/8 350 515 6 / 48
19701922 19 x 22 318 318 6 / 60 59703640 1-1/8 x 1-1/4 362 703 6 / 48
19702022 20 x 22 318 319 6 / 60 59703842 1-3/16 x 1-5/16 375 750 5 / 30
19702123 21 x 23 330 379 6 / 60
19702224 22 x 24 330 370 6 / 60
19702326 23 x 26 345 451 6 / 48
19702426 24 x 26 345 477 6 / 48
19702427 24 x 27 345 469 6 / 48
19702528 25 x 28 350 503 6 / 48
19703032 30 x 32 362 638 6 / 36
• MRN / SRN : Tetoron pouch bag • MR / SR : Nylon pouch bag
KT NO. PC. Contents Package Kg
1706MR 6 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17 Nylon 0.88 1 / 24
1708MR 8 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, Nylon 1.64 1 / 12
21 x 23
6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19,
1708MR01 8 Nylon 1.52 1 / 12
20 x 22
6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19,
1710MR 10 1970 Nylon 2.83 1 / 8
21 x 23, 24 x 27, 30 x 32
1712MR 12 Nylon 3.78 1 / 6
6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19,
20 x 22, 21 x 23, 24 x 26, 25 x 28, 30 x 32
1712MRN 12 Tetoron 3.78 1 / 6
1712MRN01 12 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, Tetoron 3.78 1 / 6
20 x 22, 21 x 23, 24 x 27, 25 x 28, 30 x 32
1707SR 7 5970 1/4 x 5/16, 3/8 x 7/16, 1/2 x 9/16, 5/8 x 11/16, 3/4 x 7/8, 15/16 x 1, Nylon 2.0 1 / 12
1-1/16 x 1-1/8
319
