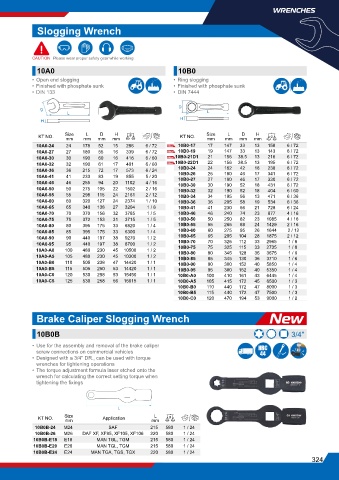

Page 365 - 蓝带金统立KINGTONY2025年样本

WRENCHES

Slogging Wrench

CAUTION Please wear proper safety gear while working.
10A0 10B0

• Open end slogging • Ring slogging
• Finished with phosphate sunk • Finished with phosphate sunk
• DIN 133 • DIN 7444

D
D
L L
H
H
H
D
L
D
L
H
KT NO. Size mm mm mm g KT NO. Size mm mm mm g
mm
mm
10A0-24 24 178 52 15 286 6 / 72 10B0-17 17 147 33 13 158 6 / 72
10A0-27 27 180 55 16 339 6 / 72 10B0-19 19 147 33 13 143 6 / 72
10A0-30 30 190 60 16 416 6 / 60 10B0-21D1 21 156 38.5 13 216 6 / 72
10A0-32 32 190 61 17 401 6 / 60 10B0-22D1 22 156 38.5 13 195 6 / 72
10A0-36 36 215 72 17 573 6 / 24 10B0-24 24 162 42 16 238 6 / 72
10A0-41 41 233 83 19 855 5 / 20 10B0-26 26 180 46 17 341 6 / 72
17
10B0-27
46
6 / 72
180
27
330
10A0-46 46 255 94 20 1102 4 / 16 10B0-30 30 190 52 18 431 6 / 72
10A0-50 50 275 105 22 1502 2 / 16 10B0-32 32 190 52 18 404 6 / 60
10A0-55 55 298 115 24 2161 2 / 12 10B0-34 34 195 56 13 471 6 / 36
10A0-60 60 320 127 24 2374 1 / 10 10B0-36 36 205 58 19 534 6 / 36
10A0-65 65 340 138 27 3204 1 / 8 10B0-41 41 230 66 21 728 6 / 24
10A0-70 70 370 156 32 3785 1 / 5 10B0-46 46 240 74 23 877 4 / 16
10A0-75 75 372 153 31 3715 1 / 5 10B0-50 50 250 82 23 1085 4 / 16
10A0-80 80 395 175 33 6820 1 / 4 10B0-55 55 265 88 24 1429 2 / 16
10A0-85 85 395 175 33 6300 1 / 4 10B0-60 60 275 95 26 1644 2 / 12
10A0-90 90 440 197 38 9270 1 / 2 10B0-65 65 295 104 28 1875 2 / 12
10A0-95 95 440 197 38 8700 1 / 2 10B0-70 70 325 112 33 2965 1 / 8
115
10A0-A0 100 480 230 45 10500 1 / 2 10B0-75 75 325 128 33 2735 1 / 8
1 / 6
3675
345
36
10B0-80
80
10A0-A5 105 480 230 45 10300 1 / 2 10B0-85 85 345 130 36 3710 1 / 6
10A0-B0 110 505 238 47 14420 1 / 1 10B0-90 90 380 152 40 5850 1 / 4
10A0-B5 115 505 250 53 14420 1 / 1 10B0-95 95 380 152 40 5350 1 / 4
10A0-C0 120 530 258 53 15450 1 / 1 10B0-A0 100 410 161 43 6445 1 / 4
10A0-C5 125 530 258 56 15015 1 / 1 10B0-A5 105 415 172 45 6500 1 / 3
10B0-B0 110 440 172 47 8000 1 / 3
10B0-B5 115 440 172 47 7500 1 / 3
10B0-C0 120 470 194 53 9000 1 / 2
Brake Caliper Slogging Wrench
10B0B 3/4"
• Use for the assembly and removal of the brake caliper HRC
screw connections on commercial vehicles 44
• Designed with a 3/4" DR., can be used with torque
wrenches for tightening operations
• The torque adjustment formula laser etched onto the
wrench for calculating the correct setting torque when
tightening the fixings

L
L
KT NO. Size Application mm g
mm
10B0B-24 M24 SAF 215 580 1 / 24
10B0B-26 M26 DAF XF, XF95, XF105, XF106 220 580 1 / 24
10B0B-E18 E18 MAN TGL, TGM 215 580 1 / 24
10B0B-E20 E20 MAN TGL, TGM 215 580 1 / 24
10B0B-E24 E24 MAN TGA, TGS, TGX 220 580 1 / 24
324
