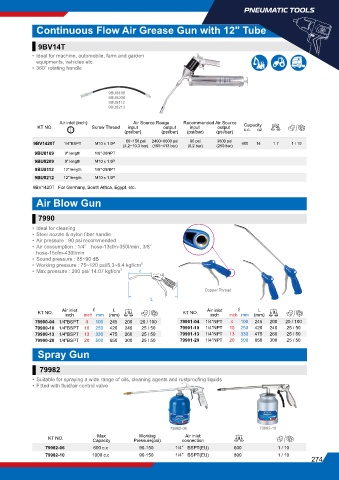

Page 315 - 蓝带金统立KINGTONY2025年样本

PNEUMATIC TOOLS

Continuous Flow Air Grease Gun with 12" Tube

9BV14T
• Ideal for machine, automobile, farm and garden
equipments, vehicles etc.
• 360° rotating handle

9BU8109
9BU8209
9BU8112
9BU8212

Air inlet (inch) Air Source Range Recommended Air Source
Capacity
KT NO. Screw Thread input output input output c.c. oz Kg
(psi/bar) (psi/bar) (psi/bar) (psi/bar)
9BV1420T 1/4"BSPT M10 x 1.0P 60~150 psi 2400~6000 psi 90 psi 3600 psi 400 14 1.7 1 / 10
(4.2~10.3 bar) (165~413 bar) (6.2 bar) (250 bar)
9BU8109 9" length 1/8"-28NPT
9BU8209 9" length M10 x 1.0P
9BU8112 12" length 1/8"-28NPT
9BU8212 12" length M10 x 1.0P
9BV1420T For Germany, South Africa, Egypt, etc.

Air Blow Gun

7990
• Ideal for cleaning
• Steel nozzle & nylon fiber handle
• Air pressure : 90 psi recommended
• Air consumption : 1/4” hose-13cfm-350I/min , 3/8”
hose-15cfm-430I/min
• Sound pressure : 85~90 dB
• Working pressure : 75~120 psi/5.3~8.4 kgf/cm 2
• Max pressure : 200 psi/ 14.07 kgf/cm 2 l

Copper Thread
L
L
ℓ
L
ℓ
KT NO. Air inlet inch mm (mm) g KT NO. Air inlet inch mm (mm) g
inch
inch
79900-04 1/4"BSPT 4 100 245 200 20 / 100 79901-04 1/4"NPT 4 100 245 200 20 / 100
79900-10 1/4"BSPT 10 250 420 240 25 / 50 79901-10 1/4"NPT 10 250 420 240 25 / 50
79900-13 1/4"BSPT 13 330 475 260 25 / 50 79901-13 1/4"NPT 13 330 475 260 25 / 50
79900-20 1/4"BSPT 20 500 650 300 25 / 50 79901-20 1/4"NPT 20 500 650 300 25 / 50
Spray Gun
79982
• Suitable for spraying a wide range of oils, cleaning agents and rustproofing liquids
• Fitted with fluid/air control valve

79982-06 79982-10
Max
Working
Air inlet
KT NO. Capacity Pressure(psi) connection g
79982-06 600 c.c 90-150 1/4” BSPT(EU) 600 1 / 10
79982-10 1000 c.c 90-150 1/4” BSPT(EU) 800 1 / 10
274
