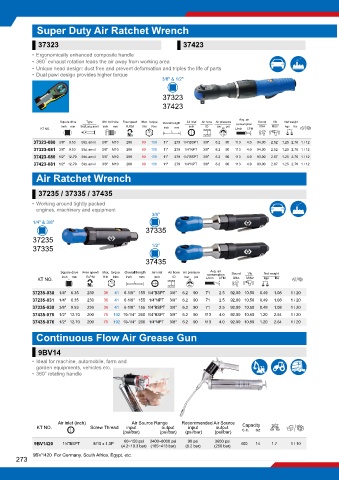

Page 314 - 蓝带金统立KINGTONY2025年样本

Super Duty Air Ratchet Wrench

37323 37423
• Ergonomically enhanced composite handle
°
• 360 exhaust rotation leads the air away from working area
• Unique head design: dust free and prevent deformation and triples the life of parts
• Dual pawl design provides higher torque
3/8" & 1/2"

37323
37423

Avg. air
Square drive Type Std. bolt size Free speed Max. torque Overall length Air inlet Air hose Air pressure consumption Sound Vib Net weight
inch mm Std/Long anvil inch mm R.P.M ft‧lb N‧m inch ID bar psi DBA M/S2 kgs Ibs
KT NO. inch mm L/min CFM
L
37323-080 3/8" 9.53 Std. anvil 3/8" M10 280 80 108 11" 279 1/4"BSPT 3/8" 6.2 90 113 4.0 94.00 2.52 1.25 2.76 1 / 12
37323-081 3/8" 9.53 Std. anvil 3/8" M10 280 80 108 11" 279 1/4"NPT 3/8" 6.2 90 113 4.0 94.00 2.52 1.25 2.76 1 / 12
37423-080 1/2" 12.70 Std. anvil 3/8" M10 280 80 108 11" 279 1/4"BSPT 3/8" 6.2 90 113 4.0 93.00 2.07 1.25 2.76 1 / 12
37423-081 1/2" 12.70 Std. anvil 3/8" M10 280 80 108 11" 279 1/4"NPT 3/8" 6.2 90 113 4.0 93.00 2.07 1.25 2.76 1 / 12

Air Ratchet Wrench

37235 / 37335 / 37435

• Working around tightly packed
engines, machinery and equipment
3/8"
1/4" & 3/8"
37335

37235
37335 1/2"
37435

Avg. air
Square drive Free speed Max. torque Overall length Air inlet Air hose Air pressure consumption Sound Vib Net weight
KT NO. inch mm R.P.M ft‧lb N‧m inch mm inch ID bar psi L/min CFM DBA M/S2 kgs Ibs
L
37235-030 1/4" 6.35 230 30 41 6-1/8" 155 1/4"BSPT 3/8" 6.2 90 71 2.5 92.00 10.50 0.49 1.08 1 / 20
37235-031 1/4" 6.35 230 30 41 6-1/8" 155 1/4"NPT 3/8" 6.2 90 71 2.5 92.00 10.50 0.49 1.08 1 / 20
37335-030 3/8" 9.53 230 30 41 6-1/8" 155 1/4"BSPT 3/8" 6.2 90 71 2.5 92.00 10.50 0.49 1.08 1 / 20
37435-075 1/2" 12.70 200 75 102 10-1/4" 260 1/4"BSPT 3/8" 6.2 90 113 4.0 92.00 10.50 1.20 2.64 1 / 20
37435-076 1/2" 12.70 200 75 102 10-1/4" 260 1/4"NPT 3/8" 6.2 90 113 4.0 92.00 10.50 1.20 2.64 1 / 20
Continuous Flow Air Grease Gun

9BV14
• Ideal for machine, automobile, farm and
garden equipments, vehicles etc.
• 360° rotating handle
360°

Air inlet (inch) Air Source Range Recommended Air Source
Capacity
KT NO. Screw Thread input output input output c.c. oz Kg
(psi/bar) (psi/bar) (psi/bar) (psi/bar)
3600 psi
90 psi
60~150 psi
9BV1420 1/4"BSPT M10 x 1.0P (4.2~10.3 bar) 2400~6000 psi (6.2 bar) (250 bar) 400 14 1.7 1 / 10
(165~413 bar)
9BV1420 For Germany, South Africa, Egypt, etc.
273
