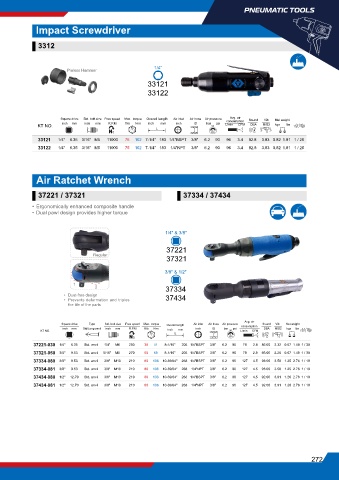

PNEUMATIC TOOLS

Impact Screwdriver

3312

1/4"
Pinless Hammer
33121
33122

Avg. air
Square drive Std. bolt size Free speed Max. torque Overall length Air inlet Air hose Air pressure consumption Sound Vib Net weight
KT NO. inch mm inch mm R.P.M ft‧lb N‧m inch mm inch ID bar psi L/min CFM DBA M/S2 kgs Ibs
L
33121 1/4" 6.35 3/16" M5 11000 75 102 7-1/4" 183 1/4"BSPT 3/8" 6.2 90 96 3.4 92.8 3.83 0.82 1.81 1 / 20
33122 1/4" 6.35 3/16" M5 11000 75 102 7-1/4" 183 1/4"NPT 3/8" 6.2 90 96 3.4 92.8 3.83 0.82 1.81 1 / 20

Air Ratchet Wrench

37221 / 37321 37334 / 37434
• Ergonomically enhanced composite handle
• Dual pawl design provides higher torque

1/4" & 3/8"

37221
Regular
37321

3/8" & 1/2"

1
2 37334
• Dust-free design 37434
• Prevents deformation and triples
the life of the parts

Avg. air
Square drive Type Std. bolt size Free speed Max. torque Overall length Air inlet Air hose Air pressure consumption Sound Vib Net weight
inch mm Std/Long anvil inch mm R.P.M ft‧lb N‧m inch ID bar psi DBA M/S2 kgs Ibs
KT NO. inch mm L/min CFM
L
37221-030 1/4" 6.35 Std. anvil 1/4" M6 250 30 41 8-1/16" 205 1/4"BSPT 3/8" 6.2 90 79 2.8 86.00 2.32 0.67 1.48 1 / 30
37321-050 3/8" 9.53 Std. anvil 5/16" M8 270 50 68 8-1/16" 205 1/4"BSPT 3/8" 6.2 90 79 2.8 93.00 2.26 0.67 1.48 1 / 30
37334-080 3/8" 9.53 Std. anvil 3/8" M10 210 80 108 10-39/64" 268 1/4"BSPT 3/8" 6.2 90 127 4.5 93.00 3.58 1.25 2.76 1 / 10
37334-081 3/8" 9.53 Std. anvil 3/8" M10 210 80 108 10-39/64" 268 1/4"NPT 3/8" 6.2 90 127 4.5 93.00 3.58 1.25 2.76 1 / 10
37434-080 1/2" 12.70 Std. anvil 3/8" M10 210 80 108 10-39/64" 268 1/4"BSPT 3/8" 6.2 90 127 4.5 92.00 3.91 1.26 2.78 1 / 10
37434-081 1/2" 12.70 Std. anvil 3/8" M10 210 80 108 10-39/64" 268 1/4"NPT 3/8" 6.2 90 127 4.5 92.00 3.91 1.26 2.78 1 / 10

272
