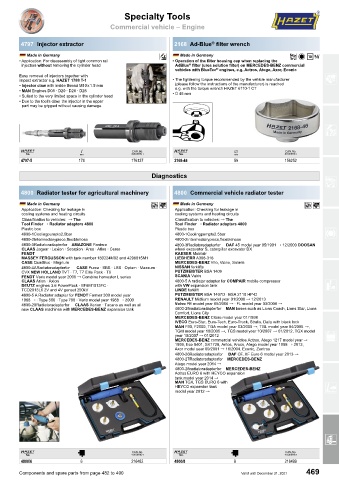

Page 470 - HAZET英文2021

Specialty Tools

Commercial vehicle – Engine

4797 Injector extractor 2168 Ad-Blue filter wrench
®
Made in Germany ß Made in Germany D c7
• Application: For disassembly of tight common rail • Operation of the filter housing cap when replacing the
®
injectors without removing the cylinder head AdBlue filter (urea solution filter) on MERCEDES-BENZ commercial
®
vehicles with BlueTec engines, e.g. Actros, Atego, Axor, Econic
Easy removal of injectors together with
impact extractor e.g. HAZET 1788 T-1 • The tightening torque recommended by the vehicle manufacturer G
• Injector claw with inside thread M10 x 1.5 mm (please follow the instructions of the manufacturer) is reached
e.g. with the torque wrench HAZET 6110-1 CT
• MAN Engines D08 ∙ D20 ∙ D26 ∙ D28
• Suited to the very limited space in the cylinder head • h 46 mm
• Due to the tool’s claw, the injector in the upper
part may be gripped without causing damage
F

1 K 4 1 t 4
4797-5 174 176137 2168-46 59 156252

Diagnostics
D
4800 Radiator tester for agricultural machinery 4800 Commercial vehicle radiator tester

Made in Germany KG Made in Germany KG
Application: Checking for leakage in Application: Checking for leakage in
cooling systems and heating circuits cooling systems and heating circuits
Classification to vehicles: → The Classification to vehicles: → The
Tool Finder → Radiator adapters 4800 Tool Finder → Radiator adapters 4800
Plastic box Plastic box
4800-1 Cooling pump to 2.5 bar 4800-1 Cooling pump to 2.5 bar R
4800-2 Intermediary piece, flexible hose 4800-2 Intermediary piece, flexible hose
4800-3 Radiator adapter for AMAZONE Pantera 4800-3 Radiator adapter for DAF 45 model year 05/1991 → 12/2000 DOOSAN
CLAAS Jaguar ∙ Lexion ∙ Scorpion ∙ Ares ∙ Atles ∙ Ceres wheel excavator S, caterpillar excavator DX
FENDT KAESER Mobilair
MASSEY FERGUSSON with tank number 180224M92 and 4296015M1 LIEBHERR A308-316
CASE Quadtruc ∙ Magnum MERCEDES-BENZ Vito, Viano, Solaris
4800-4 A Radiator adapter for CASE Puma ∙ SBS ∙ LBS ∙ Optum ∙ Maxxum ∙ NISSAN forklifts
CVX NEW HOLLAND TVT ∙ T7, T7 Elite Pack ∙ T6 PUTZMEISTER BSA 1409
FENDT Vario model year 2000 → Combine harvester L series SCANIA Vabis
CLAAS Arion ∙ Axion 4800-5 A radiator adapter for COMPAIR mobile compressor
DEUTZ engines 3.6 PowerPack ∙ BF6M1013FC ∙ with VW expansion tank C
TCD2013L6 2V and 4V genset 250kV LINDE forklift
4800-5 A Radiator adapter for FENDT Farmer 300 model year PUTZMEISTER BSA 1407D ∙ BSA 2110 HP-D
1988 → ∙ Type 500 ∙ Type 700 ∙ Vario model year 1988 → 2000 RENAULT Midlium model year 01/2000 → 12/2013
4800-20 Radiator adapter for CLAAS Xerion ∙ Tucano as well as all Volvo FE model year 05/2006 → ∙ FL model year 03/2000 →
new CLAAS machines with MERCEDES-BENZ expansion tank 4800-25 radiator adapter for MAN buses such as Lions Coach, Lions Star, Lions
Comfort, Lions City
MERCEDES-BENZ Citaro model year 01/1998
IVECO Euro-Star, Euro-Tech, Euro-Truck, Stralis, Daily with black lock
MAN F90, F2000, TGA model year 03/2000 →, TGL model year 04/2005 →,
TGM model year 10/2005 →, TGS model year 10/2007 → 01/2012, TGX model
year 10/2007 → 01/2012 O
MERCEDES-BENZ commercial vehicles Actros, Atego 1217 model year →
1999, Eco 8401, SK1728, Antos, Arocs, Atego model year 1998 → 2013,
Axor model year 09/2001 → 10/2004, Econic, Zentros
4800-26 Radiator adapter for DAF CF, XF Euro 6 model year 2013 →
4800-27 Radiator adapter for MERCEDES-BENZ
Atego model year 2014 →
4800-28 radiator adapter for MERCEDES-BENZ
Actros EURO 6 with HEYCO expansion
tank model year 2014 →
MAN TGX, TGS EURO 6 with
HEYCO expansion tank A
model year 2012 →

U

1 è 4 1 è 4
4800/6 6 216482 4800/8 8 216499

Components and spare parts from page 482 to 490 Valid until December 31, 2021 469
