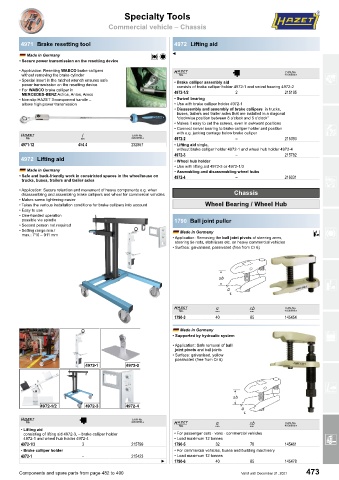

Page 474 - HAZET英文2021

Specialty Tools

Commercial vehicle – Chassis

4971 Brake resetting tool 4972 Lifting aid

Made in Germany R c C
• Secure power transmission on the resetting device
• Application: Resetting WABCO brake callipers 1 è 4
without removing the brake cylinder
• Special insert in the ratchet wrench ensures safe • Brake calliper assembly aid G
power transmission on the resetting device consists of brake calliper holder 4972-1 and swivel bearing 4972-2
• For WABCO brake calliper in 4972-1/2 2 215195
MERCEDES-BENZ Actros, Antos, Arocs
• Non-slip HAZET 3-component handle – • Swivel bearing
allows high power transmission • Use with brake calliper holder 4972-1
• Disassembly and assembly of brake callipers in trucks,
buses, trailers and trailer axles that are installed in a diagonal
“clockwise position between 8 o’clock and 5 o’clock”
• Makes it easy to set the screws, even in awkward positions
• Connect swivel bearing to brake calliper holder and position F
1 K 4 4972-2 – 215393
with e.g. jacking carriage below brake calliper
4971-12 454.4 232857 • Lifting aid single,
without brake calliper holder 4972-1 and wheel hub holder 4972-4
4972-3 – 215782
4972 Lifting aid • Wheel hub holder
• Use with lifting aid 4972-3 or 4972-1/3
Made in Germany • Assembling and disassembling wheel hubs
• Safe and back-friendly work in constricted spaces in the wheelhouse on 4972-4 – 216031
trucks, buses, trailers and trailer axles D
• Application: Secure retention and movement of heavy components e.g. when
disassembling and assembling brake callipers and wheel for commercial vehicles Chassis
• Makes screw tightening easier
• Takes the various installation conditions for brake callipers into account Wheel Bearing / Wheel Hub
• Easy to use
• One-handed operation
possible via spindle 1790 Ball joint puller
• Second person not required
• Setting range min./ Made in Germany
max.: 716 – 911 mm C R
• Application: Removing the ball joint pivots of steering arms,
steering tie rods, stabilizers etc. on heavy commercial vehicles
• Surface: galvanised, passivated (free from Cr 6)

C

1 1 U 4

1790-3 40 85 145454

Made in Germany
• Supported by hydraulic system O
• Application: Safe removal of ball
joint pivots and ball joints
• Surface: galvanised, yellow
passivated (free from Cr 6)
4972-1 4972-2

A

4972-1/2 4972-3 4972-4
1 è 4 1 4

• Lifting aid 1 U
consisting of lifting aid 4972-3, – brake calliper holder • For passenger cars ∙ vans ∙ commercial vehicles
4972-1 and wheel hub holder 4972-4 • Load maximum 12 tonnes U
4972-1/3 3 215799 1790-5 32 70 145461
• Brake calliper holder • For commercial vehicles, buses and building machinery
4972-1 – 215423 • Load maximum 12 tonnes
B 1790-6 40 85 145478

Components and spare parts from page 482 to 490 Valid until December 31, 2021 473
