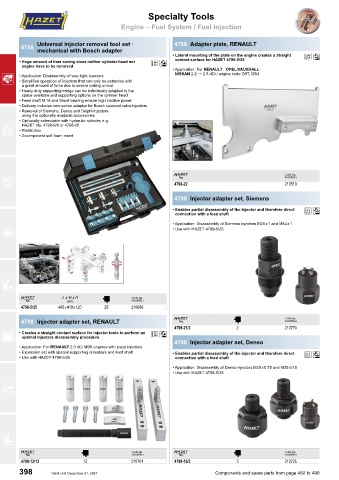

Specialty Tools Specialty Tools

Engine – Fuel System / Fuel Injection Engine – Fuel System / Fuel Injection

4798 Universal injector removal tool set ∙ 4798 Adapter plate, RENAULT
mechanical with Bosch adapter
• Lateral mounting of the plate on the engine creates a straight Jß
• Huge amount of time saving since neither cylinder head nor Jß contact surface for HAZET 4798-5/25
engine have to be removed
• Application: For RENAULT ∙ OPEL/VAUXHALL ∙
G • Application: Disassembly of very tight injectors NISSAN 2.2 → 2.5 dCi / engine code G9T, G9U
• Simplified operation of injectors that can only be extracted with
a great amount of force due to severe coking or rust
• Heavy duty supporting bridge can be individually adapted to the
space available and supporting options on the cylinder head
• Feed shaft M 18 and thrust bearing ensure high tractive power
• Delivery includes connection adapter for Bosch solenoid valve injectors
• Removal of Siemens, Denso and Delphi injectors
using the optionally available accessories
• Optionally extendable with hydraulic cylinder, e.g.
HAZET No. 4798-9/6 or 4798-20
F • Plastic box
• 2-component soft foam insert

1 4
D 4798-22 210510

4798 Injector adapter set, Siemens
• Enables partial disassembly of the injector and therefore direct Jß
connection with a feed shaft
• Application: Disassembly of Siemens injectors M25 x 1 and M14 x 1
R • Use with HAZET 4798-5/25

C

1 L x W x H è 4
mm
4798-5/25 490 x 410 x 120 25 210688

4798 Injector adapter set, RENAULT 1 è 4
4798-21/2 2 210770
O • Creates a straight contact surface for injector tools to perform an Jß 4798 Injector adapter set, Denso
optimal injectors disassembly procedure

• Application: For RENAULT 2.0 dCi M9R engines with piezo injectors
• Expansion set with special supporting crossbars and feed shaft • Enables partial disassembly of the injector and therefore direct Jß
• Use with HAZET 4798-5/25 connection with a feed shaft
• Application: Disassembly of Denso injectors M25 x 0.75 and M25 x 0.5
• Use with HAZET 4798-5/25

A

U

1 è 4 1 è 4
4798-12/13 13 210701 4798-10/3 3 210725
398 Valid until December 31, 2021 Components and spare parts from page 482 to 490
