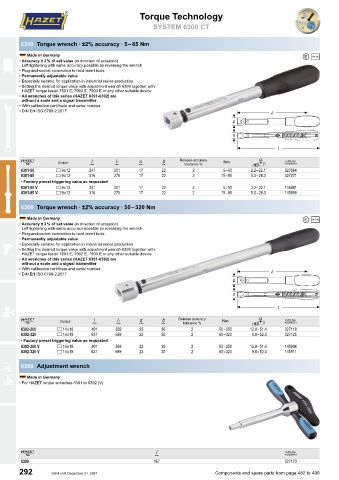

Page 293 - HAZET英文2021

Torque Technology Torque Technology

SYSTEM 6300 CT Insert tool holders

6300 Torque wrench ∙ ±2% accuracy ∙ 5 – 85 Nm

Made in Germany / B
• Accuracy ± 2 % of set value (in direction of actuation)
Left tightening with same accuracy possible by reversing the wrench
• Plug-and-socket connection to hold insert tools
• Permanently adjustable value
• Especially suitable for application in industrial series production
• Setting the desired torque value with adjustment wrench 6399 together with
HAZET torque tester 7901 E, 7902 E, 7903 E or any other suitable device
• All wrenches of this series (HAZET 6391-6392) are
without a scale and a signal transmitter
• With calibration certificate and serial number
• DIN EN ISO 6789-2:2017

1 Output K M 1 5 Release accuracy ! # 4
tolerance %
6391-50 ) 9 x 12 241 201 17 22 2 5 – 50 2.2 – 22.1 027064
6391-85 ) 9 x 12 316 276 17 22 2 15 – 85 5.0 – 28.3 027071
• Factory preset triggering value as requested
6391-50 V ) 9 x 12 241 201 17 22 2 5 – 50 2.2 – 22.1 145881
6391-85 V ) 9 x 12 316 276 17 22 2 15 – 85 5.0 – 28.3 145898

6300 Torque wrench ∙ ±2% accuracy ∙ 50 – 320 Nm
Made in Germany / D
• Accuracy ± 2 % of set value (in direction of actuation)
Left tightening with same accuracy possible by reversing the wrench
• Plug-and-socket connection to hold insert tools
• Permanently adjustable value
• Especially suitable for application in industrial series production
• Setting the desired torque value with adjustment wrench 6399 together with
HAZET torque tester 7901 E, 7902 E, 7903 E or any other suitable device
• All wrenches of this series (HAZET 6391-6392) are
without a scale and a signal transmitter
• With calibration certificate and serial number
• DIN EN ISO 6789-2:2017

1 Output K M 1 5 Release accuracy ! # 4
tolerance %
6392-200 ) 14 x 18 401 359 23 30 2 50 – 200 12.8 – 51.4 027118
6392-320 ) 14 x 18 631 589 23 30 2 60 – 320 9.8 – 52.0 027125
• Factory preset triggering value as requested
6392-200 V ) 14 x 18 401 359 23 30 2 50 – 200 12.8 – 51.4 145904
6392-320 V ) 14 x 18 631 589 23 30 2 60 – 320 9.8 – 52.0 145911

6399 Adjustment wrench

Made in Germany
• For HAZET torque wrenches 6391 to 6392 (V)

1 K 4
6399 167 027170
292 Valid until December 31, 2021 Components and spare parts from page 482 to 490
