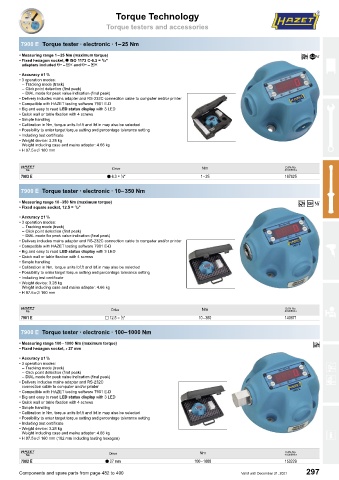

Page 298 - HAZET英文2021

Torque Technology

Torque testers and accessories

7900 E Torque tester ∙ electronic ∙ 1– 25 Nm

• Measuring range 1 – 25 Nm (maximum torque) K F
• Fixed hexagon socket, g ISO 1173 C-6.3 = /4”
1
adapters included E – 6 and E – 7
• Accuracy ± 1 %
• 3 operation modes:
– Tracking mode (track)
– Click point detection (first peak)
– DIAL mode for peak value indication (final peak)
• Delivery includes mains adapter and RS-232C connection cable to computer and/or printer
• Compatible with HAZET testing software 7901 E-D
• Big and easy to read LED status display with 3 LED
• Quick wall or table fixation with 4 screws
• Simple handling
• Calibration in Nm, torque units lbf.ft and lbf.in may also be selected
• Possibility to enter target torque setting and percentage tolerance setting
• Including test certificate
• Weight device: 3.28 kg
Weight including case and mains adapter: 4.66 kg
• H 97.5 x x 160 mm

1 Drive ! 4

7903 E g 6.3 = ⁄4″ 1 – 25 167425
1
7900 E Torque tester ∙ electronic ∙ 10– 350 Nm

• Measuring range 10 –350 Nm (maximum torque) K 8
• Fixed square socket, 12.5 = /2”
1
• Accuracy ± 1 %
• 3 operation modes:
– Tracking mode (track)
– Click point detection (first peak)
– DIAL mode for peak value indication (final peak)
• Delivery includes mains adapter and RS-232C connection cable to computer and/or printer
• Compatible with HAZET testing software 7901 E-D
• Big and easy to read LED status display with 3 LED
• Quick wall or table fixation with 4 screws
• Simple handling
• Calibration in Nm, torque units lbf.ft and lbf.in may also be selected
• Possibility to enter target torque setting and percentage tolerance setting
• Including test certificate
• Weight device: 3.28 kg
Weight including case and mains adapter: 4.66 kg
• H 97.5 x x 160 mm
1 Drive ! 4

1
7901 E j 12.5 = ⁄2″ 10 – 350 140671
7900 E Torque tester ∙ electronic ∙ 100– 1000 Nm

• Measuring range 100 – 1000 Nm (maximum torque) K
• Fixed hexagon socket, Ä 27 mm
• Accuracy ± 1 %
• 3 operation modes:
– Tracking mode (track)
– Click point detection (first peak)
– DIAL mode for peak value indication (final peak)
• Delivery includes mains adapter and RS-232C
connection cable to computer and/or printer
• Compatible with HAZET testing software 7901 E-D
• Big and easy to read LED status display with 3 LED
• Quick wall or table fixation with 4 screws
• Simple handling
• Calibration in Nm, torque units lbf.ft and lbf.in may also be selected
• Possibility to enter target torque setting and percentage tolerance setting
• Including test certificate
• Weight device: 3.28 kg
Weight including case and mains adapter: 4.66 kg
• H 97.5 x x 160 mm (182 mm including testing hexagon)
1 Drive ! 4
7902 E g 27 mm 100 – 1000 150229
