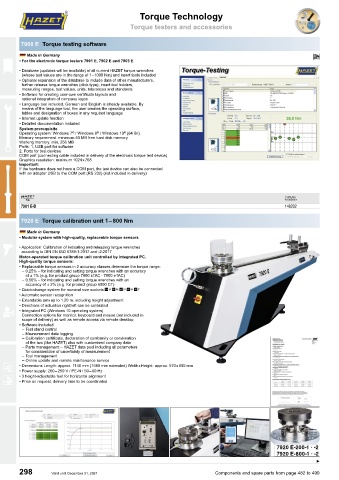

Page 299 - HAZET英文2021

Torque Technology Torque Technology

Torque testers and accessories Torque testers and accessories

7900 E Torque testing software

Made in Germany K
• For the electronic torque testers 7901 E, 7902 E and 7903 E
• Database (updates will be available) of all current HAZET torque wrenches
(whose test values are in the range of 1 –1000 Nm) and insert tools included
• Optional expansion of the database to include data of other manufacturers,
further release torque wrenches (click-type), insert tool holders,
measuring ranges, test values, units, tolerances and standards
• Software for creating user-own certificate layouts and
optional integration of company logos
• Language tool included. German and English is already available. By
means of the language tool, the user creates the operating surface,
tables and designation of boxes in any required language
• Internet update function
• Detailed documentation included
System prerequisite
®
®
®
Operating system: Windows 7 / Windows 8 / Windows 10 (64 Bit)
Memory requirement: minimum 50 MB free hard disk memory
Working memory: min. 256 MB
Ports: 1. USB port for software
2. Ports for test devices
COM port (connecting cable included in delivery of the electronic torque test device)
Graphics resolution: minimum 1024 x 768
Important:
If the hardware does not have a COM port, the test device can also be connected
with an adapter USB to the COM port (RS 232) (not included in delivery)
1 4
7901 E-D 148202

7920 E Torque calibration unit 1 – 800 Nm
Made in Germany
• Modular system with high-quality, replaceable torque sensors
• Application: Calibration of indicating and releasing torque wrenches
according to DIN EN ISO 6789-1:2017 and -2:2017
Motor-operated torque calibration unit controlled by integrated PC.
High-quality torque sensors:
• Replaceable torque sensors in 2 accuracy classes determine the torque range:
– 0.25% – for indicating and setting torque wrenches with an accuracy
of ± 1% (e.g. for product group 7000 sTAC ∙ 7000 eTAC)
– 0.50% – for indicating and setting torque wrenches with an
accuracy of ± 2% (e.g. for product group 6000 CT)
• Quick-change system for nominal size sockets 1 2 3 4 5
• Automatic sensor recognition
• Extendable arm up to 1.20 m, including height adjustment
• Directions of actuation right/left can be calibrated
• Integrated PC (Windows 10 operating system)
Connection options for monitor, keyboard and mouse (not included in
scope of delivery) as well as remote access via remote desktop
• Software included
– Test stand control
– Measurement data logging
– Calibration certificate, declaration of conformity or combination
of the two (like HAZET) also with customised company data
– Parts management – HAZET data pool including all parameters
for consideration of uncertainty of measurement
– Tool management
– Online update and remote maintenance service
• Dimensions Length: approx. 1140 mm (1680 mm extended) Width x Height: approx. 570 x 600 mm
• Power supply: 200 – 250 V / PE-N / 50 – 60 Hz
• 3 height-adjustable feet for horizontal alignment
• Price on request, delivery time to be coordinated

7920 E-200-1 · -2
7920 E-800-1 · -2
B
