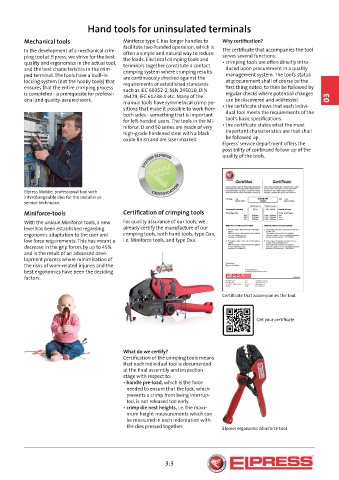

Hand tools for uninsulated terminals

Mechanical tools Miniforce type C has longer handles to Why certification?
facilitate two-handed operation, which is
In the development of a mechanical crim- often a simple and natural way to reduce The certificate that accompanies the tool
ping tool at Elpress, we strive for the best the loads. Electrical crimping tools and serves several functions:
quality and ergonomics in the actual tool, terminals together constitute a contact • crimping tools are often directly intro-
and the best characteristics in the crim- crimping system where crimping results duced upon procurement in a quality
ped terminal. The tools have a built-in are continuously checked against the management system. The tool’s status
locking system (not the hobby tools) that requirements of established standards at procurement shall of course be the
ensures that the entire crimping process such as IEC 60352-2, SEN 245010, DIN first thing noted, to then be followed by
is completed - a prerequisite for professi- 46429, IEC 61238-1 etc. Many of the regular checks where potential changes
onal and quality-assured work. can be discovered and addressed. 03
manual tools have symmetrical crimp po-
sitions that make it possible to work from • the certificate shows that each indivi-

dual tool meets the requirements of the
both sides - something that is important
for left-handed users. The tools in the Mi- tool’s basic specifications.
niforce, D and 50 series are made of very • the certificate states what the most
high-grade hardened steel with a black important characteristics are that shall
oxide finish and are laser marked. be followed up.
Elpress’ service department offers the
possibility of continued follow-up of the

quality of the tools.

Elpress Mobile, professional tool with
interchangeable dies for the installer or
service technician.
Miniforce-tools Certification of crimping tools
With the unique Miniforce tools, a new For quality assurance of our tools, we
level has been established regarding already certify the manufacture of our
ergonomic adaptation to the user and crimping tools, both hand tools, type Gxx,
low force requirements. This has meant a i.e. Miniforce tools, and type Dxx.
decrease in the grip forces by up to 45%
and is the result of an advanced deve-
lopment process where minimisation of
the risks of work-related injuries and the
best ergonomics have been the deciding
factors.

Certificate that accompanies the tool.

Get your certificate.

What do we certify?
Certification of the crimping tools means
that each individual tool is documented
at the final assembly and inspection
stage with respect to:
• handle pre-load, which is the force
needed to ensure that the lock, which
prevents a crimp from being interrup-
ted, is not released too early.
• crimp die nest heights, i.e. the maxi-
mum height measurements which can
be measured in each indentation with
the dies pressed together. Elpress ergonomic Miniforce tool.

3:3
